- Motor & battery
- Motor
- Bosch Cargo Line, 85 Nm torque, 400% assist, max speed 25 km/h
- Battery
- Bosch 500 Wh PowerPack, Fast Swap, dual battery bays (max 2 x 500 Wh)

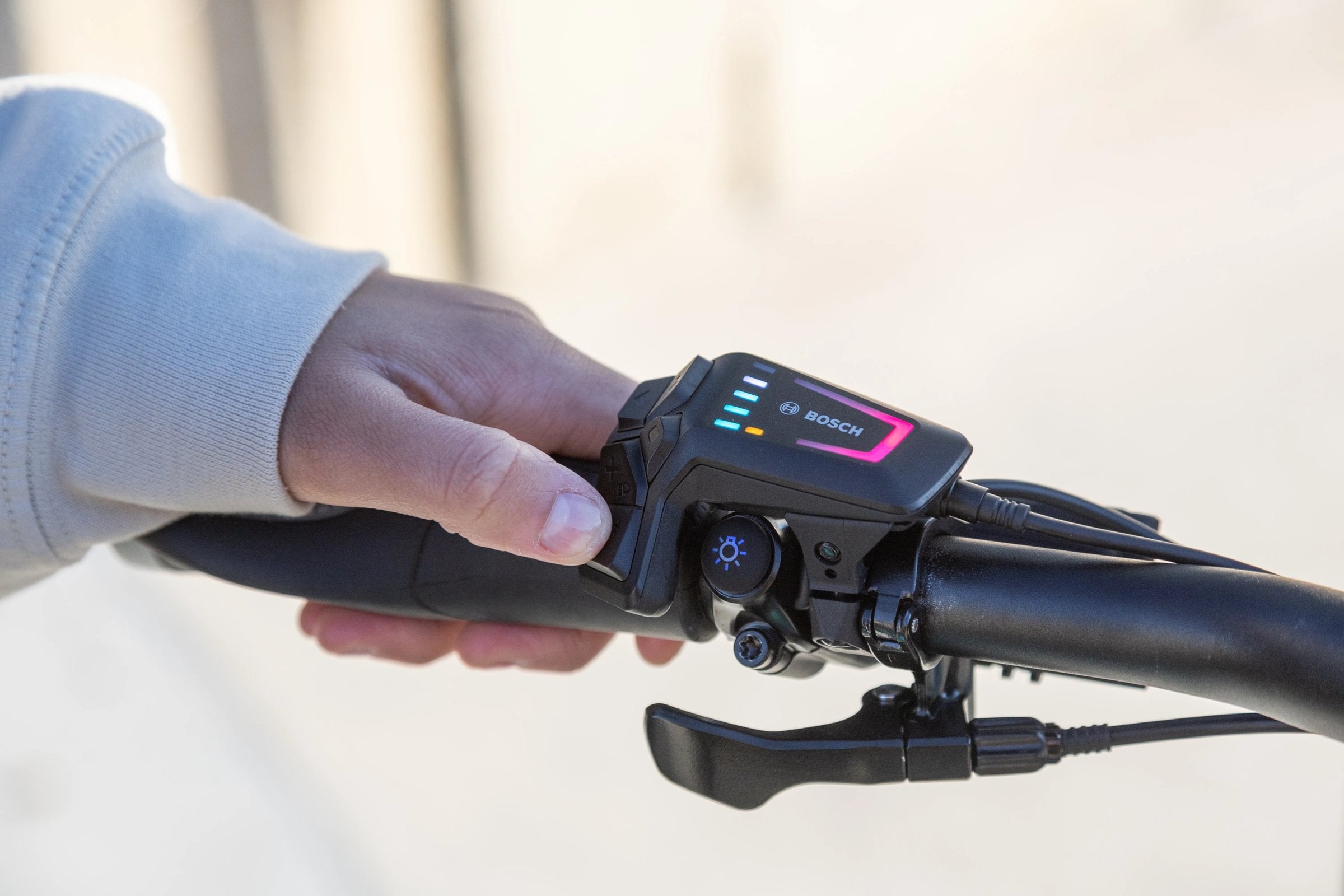

- Display
- Bosch Purion
- Range
- 500 Wh: 40–102 km; 1,000 Wh: 82–207 km
- Charger
- 220V, 4A
- Frame & fork
- Frame
- Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
- Fork
- Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, thru-axle, 50 mm travel, EFBE approved: 210 kg
- Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Handlebar
- Tern Sweep, 6061-AL, Tern Andros adapted
- Grips
- Ergon
- Saddle
- Tern GSD by Velo
- Seatpost
- Tern VLT with LightAction levers
- Drivetrain
- Shifter
- Shimano Deore, 1 x 10-speed
- Rear derailleur
- Shimano Deore Shadow+
- Cassette
- Shimano 11–42T, 10-speed
- Chain
- KMC 10-speed, eBike-rated, EPT corrosion resistant coating
- Crankset
- Tern GSD, forged 6061-AL DH crankarm
- Pedals
- Urban with non-slip surface, sealed bearings
- Brakes
- Front brake
- Magura MT5, 4-piston hydraulic disc, 180 mm rotor
- Rear brake
- Magura MT5, 4-piston hydraulic disc, 180 mm rotor
- Brake levers
- Magura MT5 e-stop, hydraulic, with brake light sensor
- Wheels & tyres
- Rims
- Tern Atlas, ultra wide 36 mm, dual reinforced joint
- Hubs
- Tern Atlas, cooling fins, Boost thru-axle, sealed cartridge bearings
- Tyres
- F: Schwalbe Big Ben Plus, Green Guard, Reflex. R: Tern x Schwalbe Super Moto-X, Green Guard, Reflex
- Spokes
- Stainless steel
- Accessories & safety
- Kickstand
- Atlas Lockstand Gen 2, AutoLock with remote unlock, patented technology
- Front light
- Ignis Headlight, ultra wide low beam
- Rear light
- RearStop Brake Light, always on

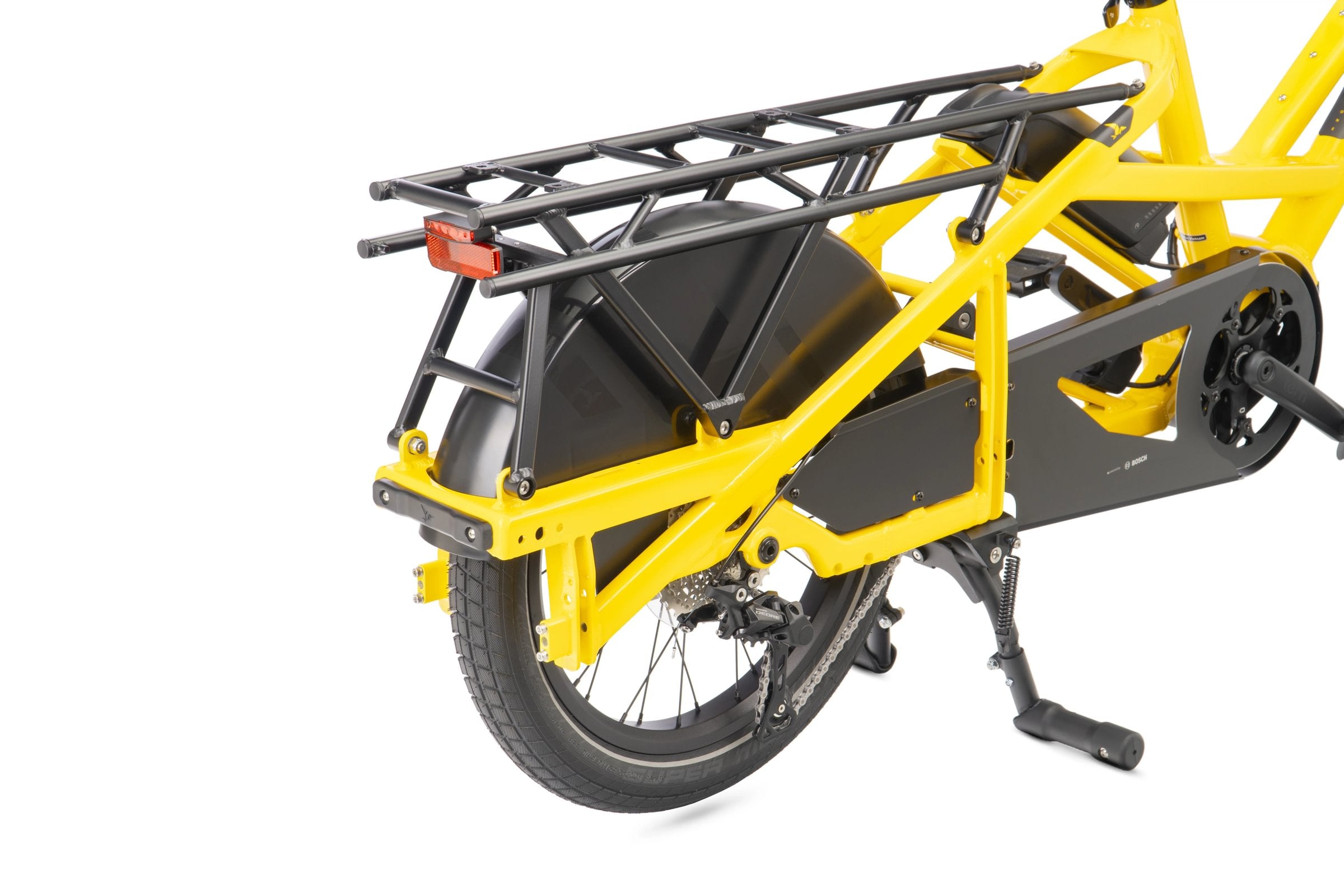

- Rear rack
- Atlas G, 100 kg capacity
- Chainguard
- Tern GSD, full chain cover
- Fenders
- F: aluminium. R: GSD wheel guard
- Frame lock
- ABUS or AXA, keyed-alike with Bosch battery
- Bell
- Pitch Plus, brass
- Geometry & weight
- Weight
- 34.64 kg
- Bike size
- 191 × 68 × 116 cm
- Wheelbase
- 135 cm
- Folding size
- 182 × 46 × 87 cm
- Rider height
- 150–200 cm
- Max rider weight
- 130 kg
- Max gross vehicle weight
- 210 kg
- Rear rack capacity
- 100 kg
Specifications reflect the standard UK model. Component changes may occur without prior notice. Confirm final details at point of purchase.
