- Frame and fork
- Frame

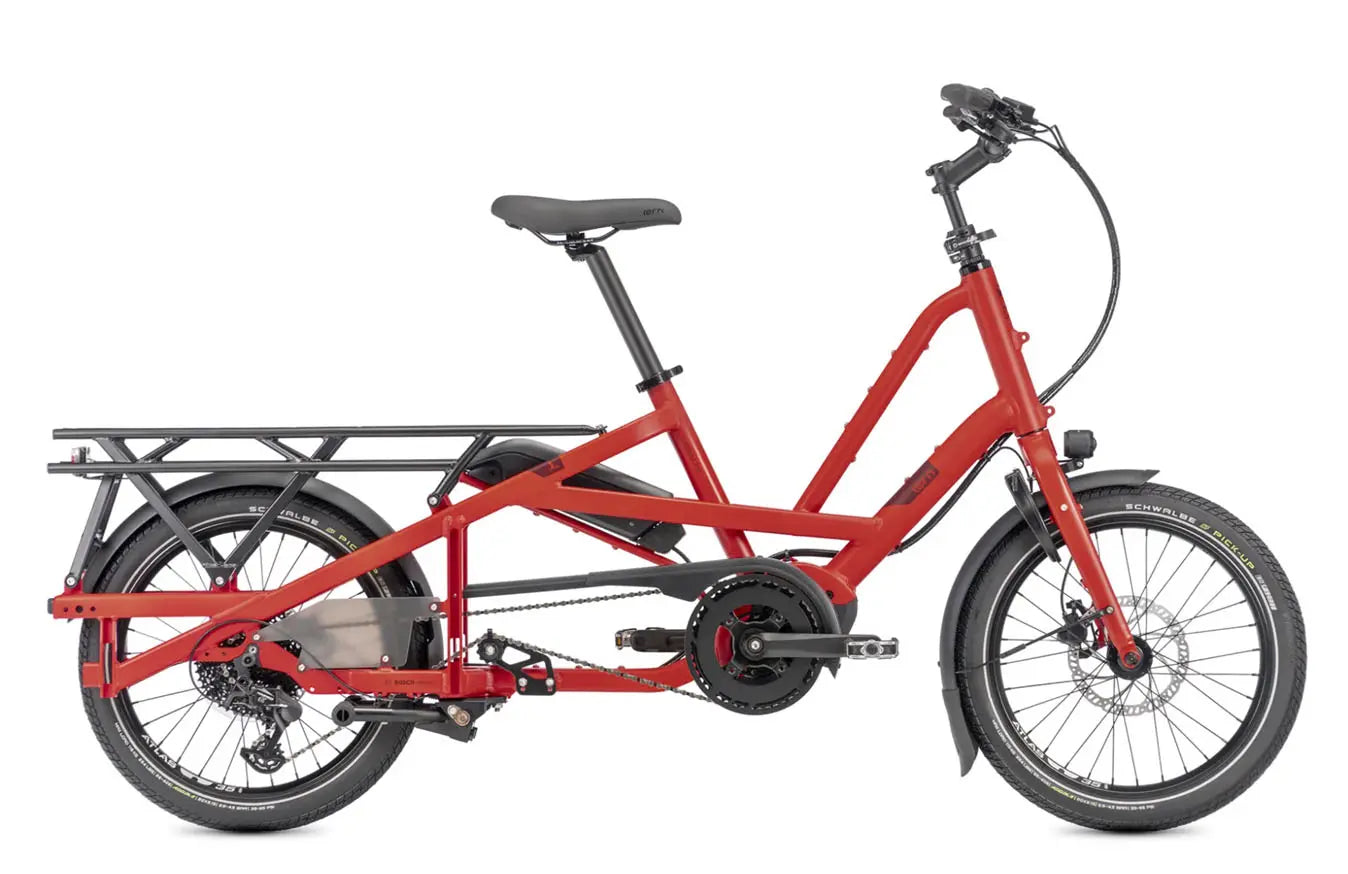

- Tern Quick Haul Long, patented design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
- Fork
- Cargo, aluminium alloy, DIN 79010 certified: 190 kg (419 lb)
- Cockpit and contact points
- Stem
- Speedlifter, adjustable, 3D forged stem, 31.8
- Headset
- TH, cartridge bearings
- Handlebar
- Low riser ergo, 31.8, 6061-AL
- Grips
- Velo ergonomic, lock-on
- Saddle
- Velo Comfort
- Seatpost
- 34.9 mm, 6061-AL, micro-adjust clamp
- Seatpost clamp
- Tern Collar
- Brakes
- Front brake
- Tektro hydraulic disc
- Rear brake
- Tektro hydraulic disc
- Brake levers
- Tektro hydraulic disc
- Wheels and tyres
- Front hub
- Disc, aluminium
- Rear hub
- 9 spd, disc, aluminium, Boost
- Spokes & nipples
- Stainless steel
- Rims
- Tern Atlas H, cargo
- Tyres
- Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Drivetrain
- Shifter
- Tektro, 1 x 9 spd, trigger
- Rear derailleur
- Tektro custom for Tern, 1 x 9 spd
- Crankset
- Tern custom, forged 6061-AL crankarm, anti-drop chainring
- Cassette/freewheel
- Tektro 11-42T, 9 spd
- Bottom bracket
- Motor integrated
- Chain
- KMC for eBike, 9 spd
- Pedals
- Urban with non-slip surface
- Shifter cable & housing
- SP
- Motor and battery

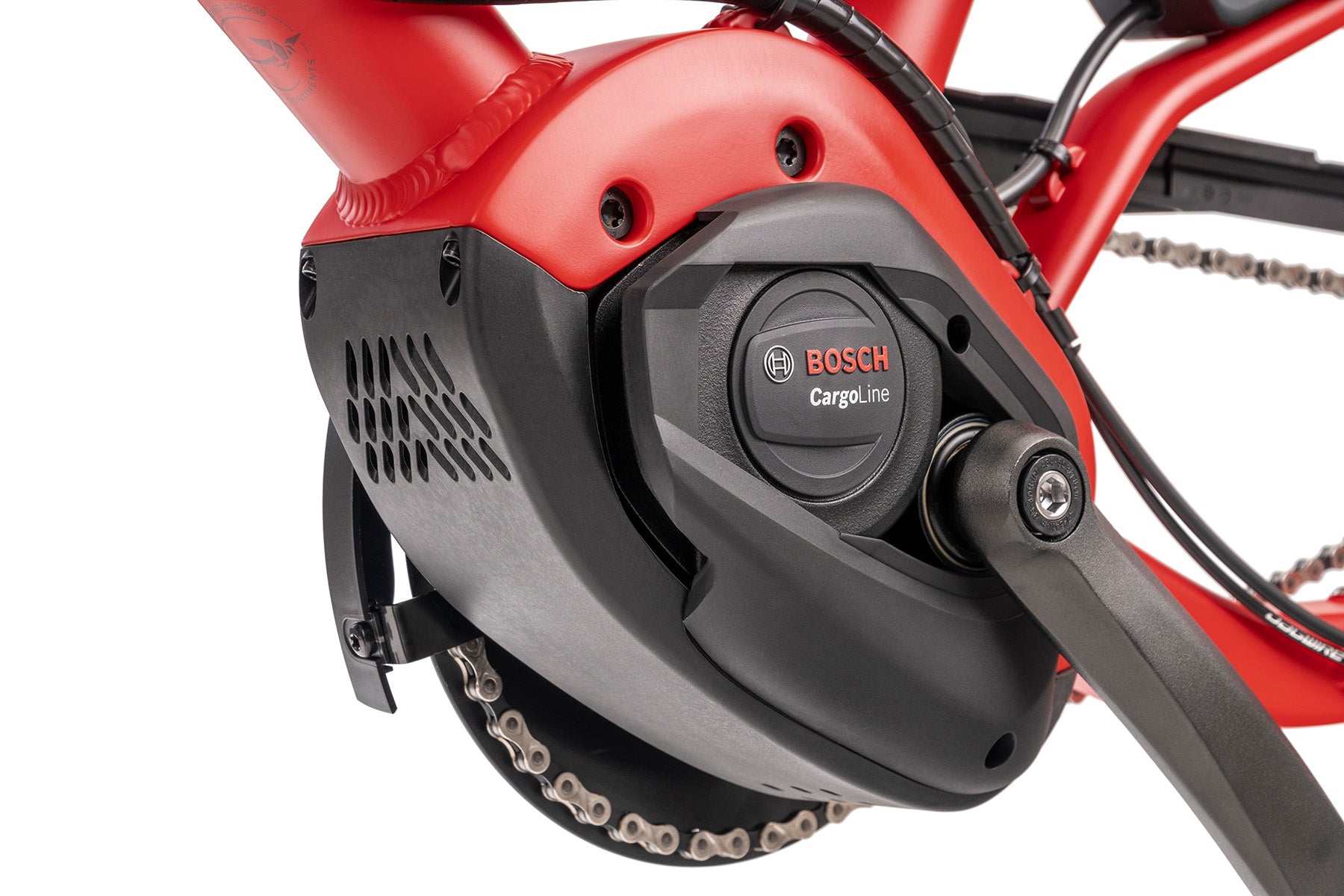

- Motor
- Bosch Cargo Line, 400% assist, 85 Nm torque, max speed 25 kph

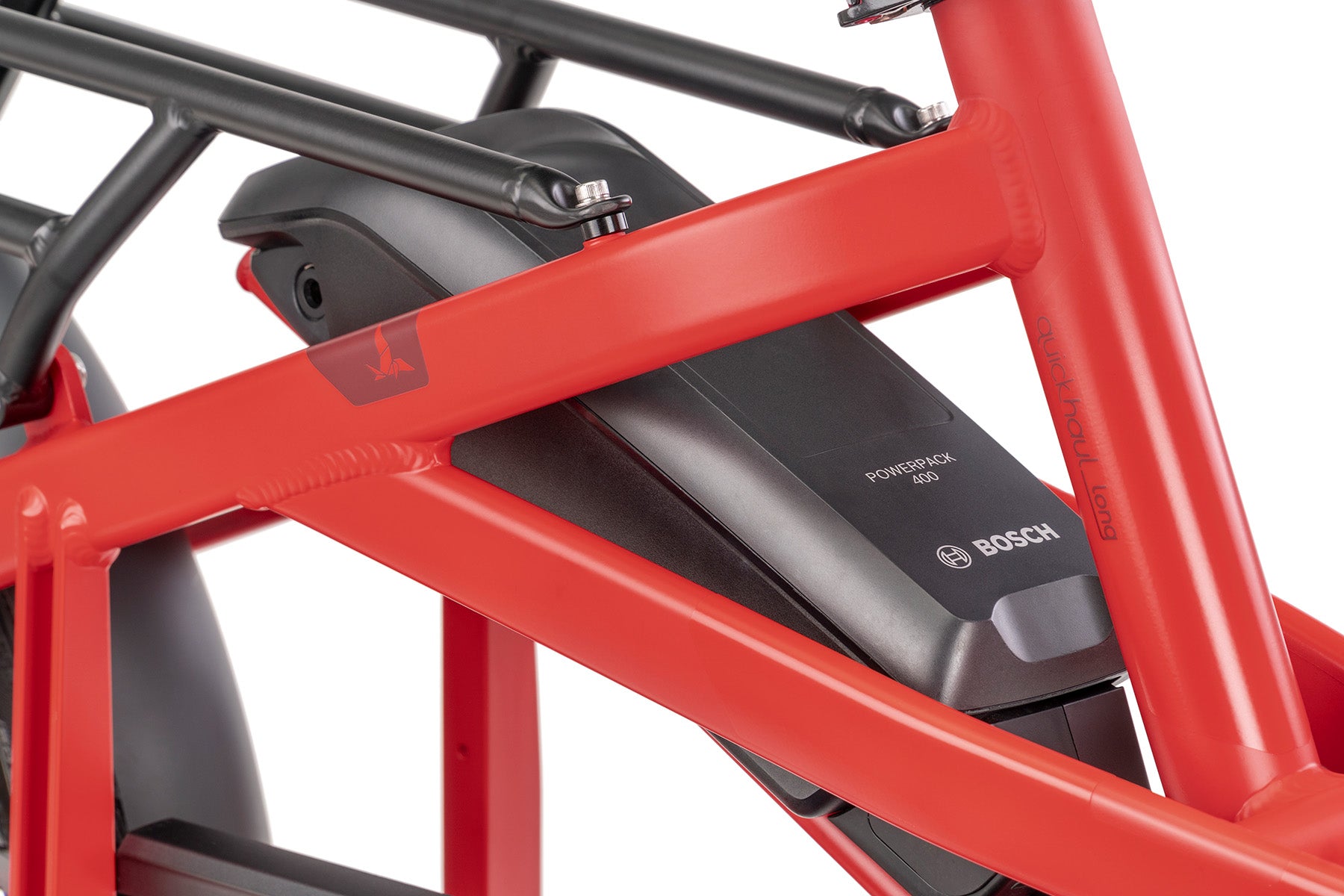

- Battery
- Bosch PowerPack 400
- Display
- Bosch Purion, 4 mode selectable, walk assist
- Range
- 400 Wh: 42–85 km (26–53 mi)
- Charger
- 220V, 4A (EU); 100–240V, 4A (US)
- Equipment
- Bell
- Aluminium
- Chainguard
- SKS Chainblade
- Kickstand
- Atlas Kickstand, for cargo
- Luggage socket
- Combo Mount
- Front light
- 90 lux, StVZO approved
- Rear light
- Herrmans
- Fenders
- SplashGuard, stainless hardware

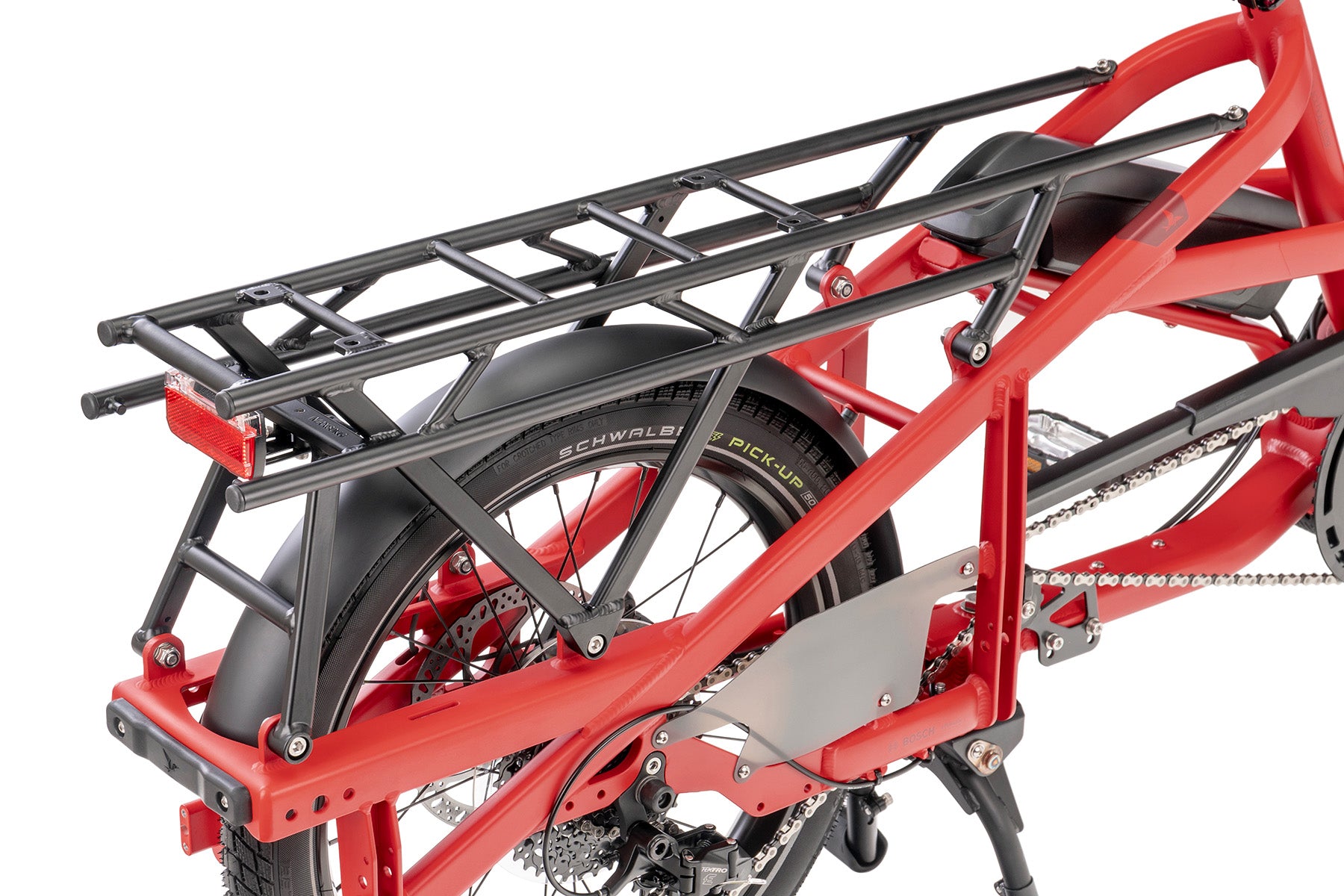

- Rack
- Atlas L, 90 kg (198 lb) capacity
- Frame lock
- ABUS or AXA, keyed-alike with Bosch battery
- Fit and capacity
- Generation
- Gen 1
- Wheel size
- 20-inch
- Speeds
- 1 x 9
- Gear inches
- 23" – 89" (1.87 – 7.13 m)
- Frame sizes
- One size
- Bike size
- 187 × 70 × 102.5 cm (73.6 × 27.6 × 40.4 in)
- Wheelbase
- 130 cm (51.2 in)
- Standover height
- 48 cm (18.9 in)
- Seatpost to handlebar
- 60–64 cm (23.6–25.2 in)
- Saddle to pedal
- 76–99 cm (29.9–39 in)
- Suggested rider height
- 155–190 cm (61–74.8 in)
- Weight
- 29.3 kg (64.6 lb)
- Max gross vehicle weight
- 190 kg (418.9 lb)
- Max rider weight
- 120 kg (264.6 lb)
