- Frame
- Frame

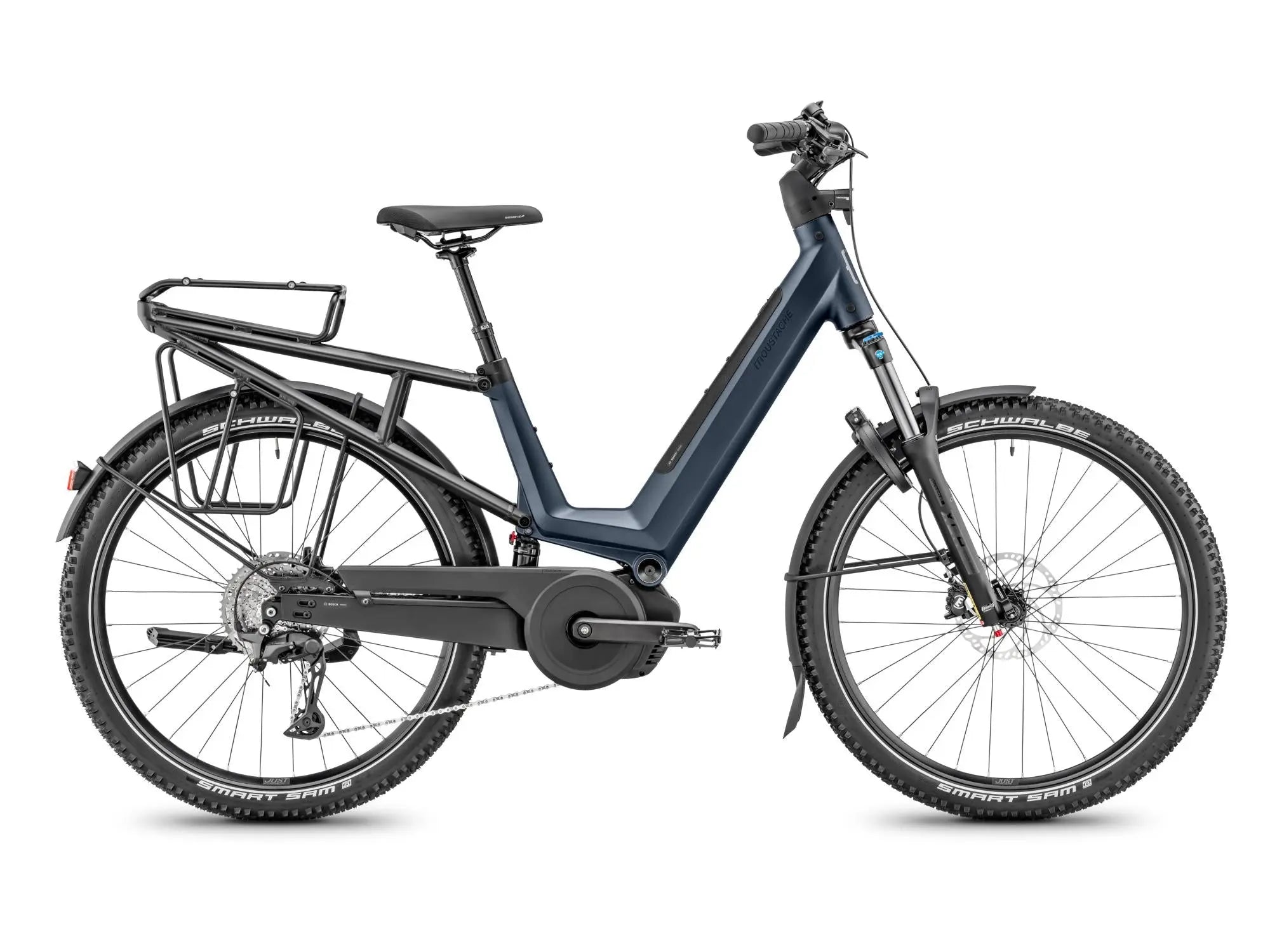

- Xroad FS, aluminium, one-piece gravity cast, low stepover, increased rigidity thanks to internal ribs, unified rear swingarm, discreet internal cable routing, integrated battery and drive unit
- Suspensions

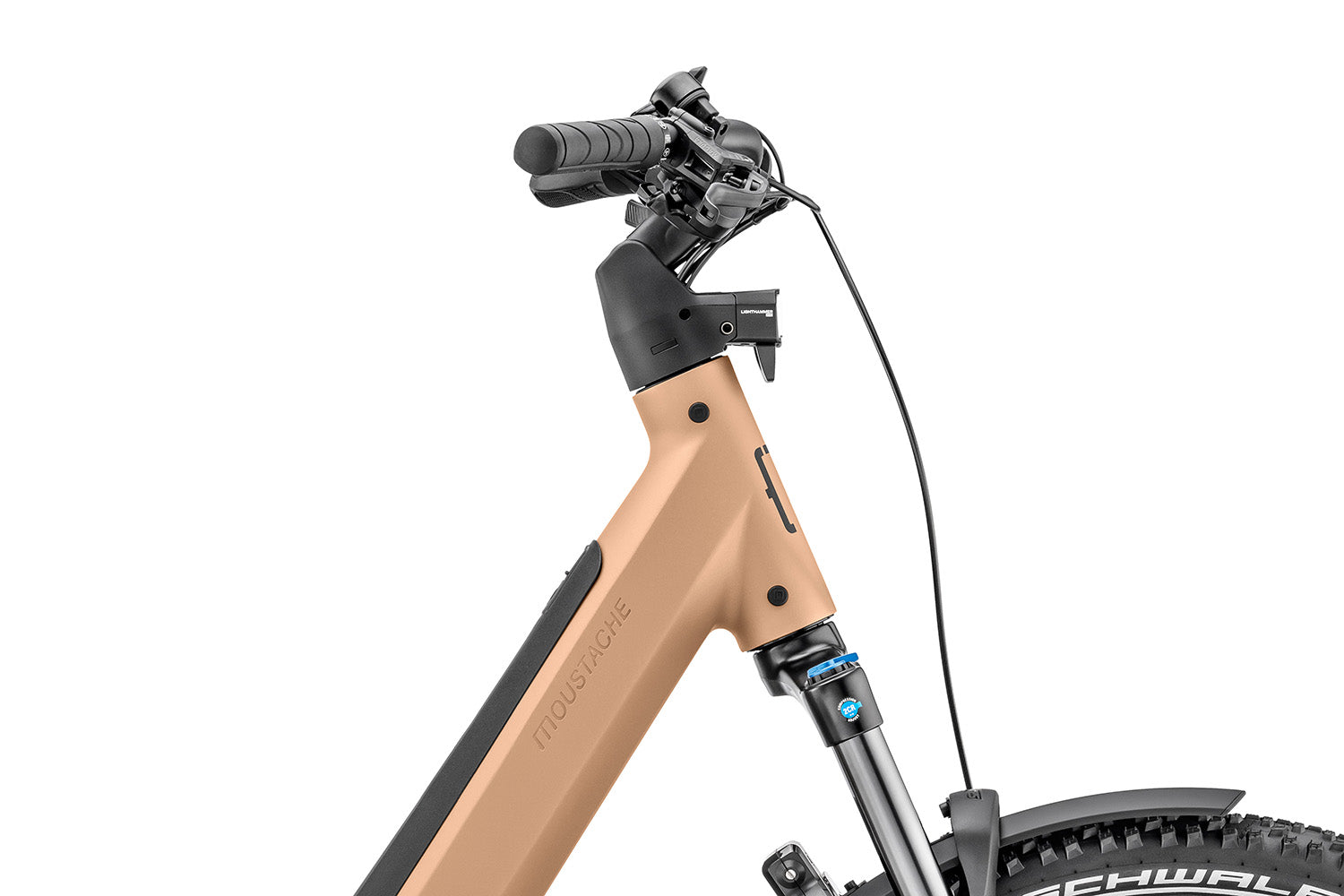

- Fork
- SR Suntour XCR 34, lockout function, 120 mm travel

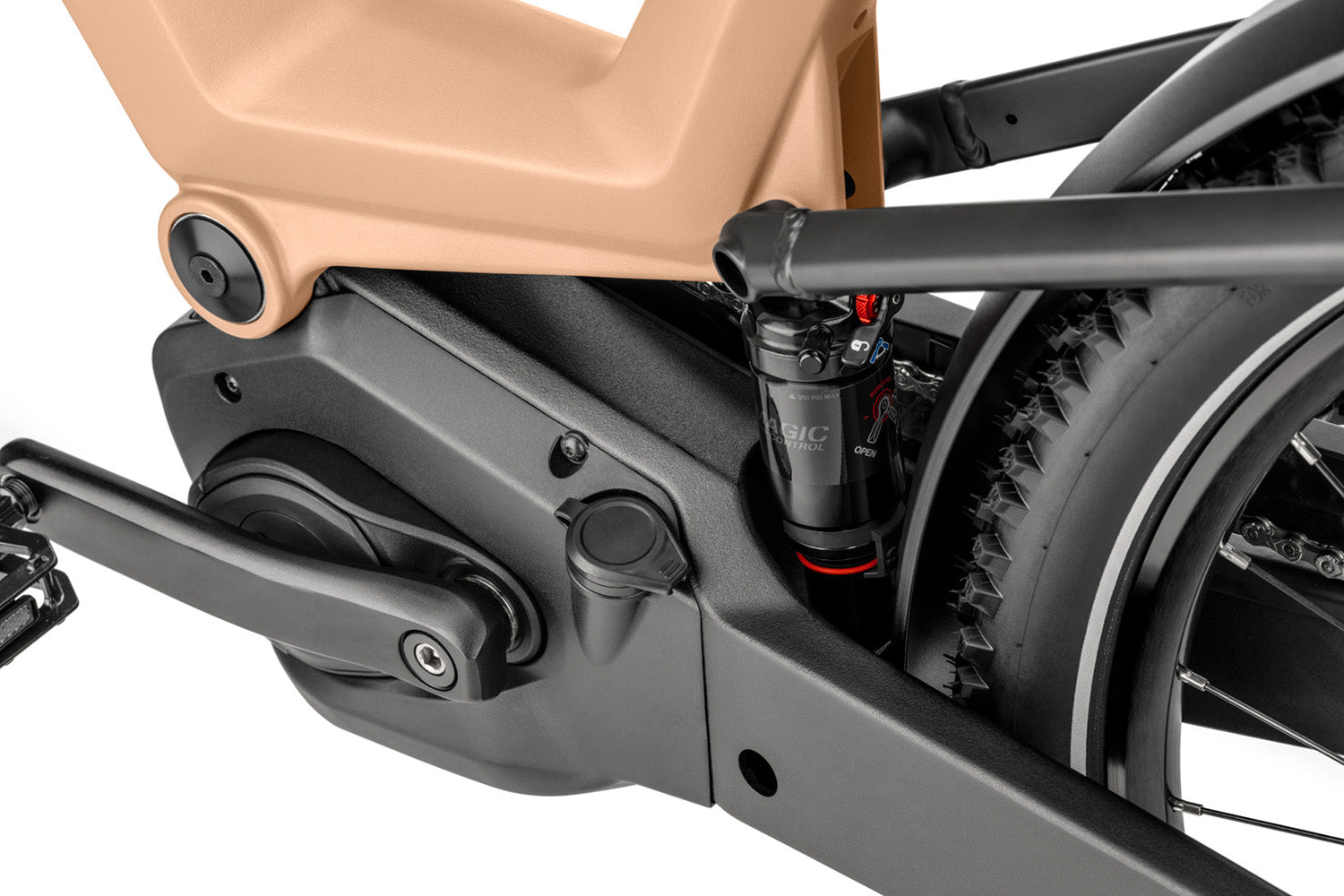

- Shock
- Moustache Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic rebound control, built-in 165 x 38 mm, 115 mm travel
- Motor system

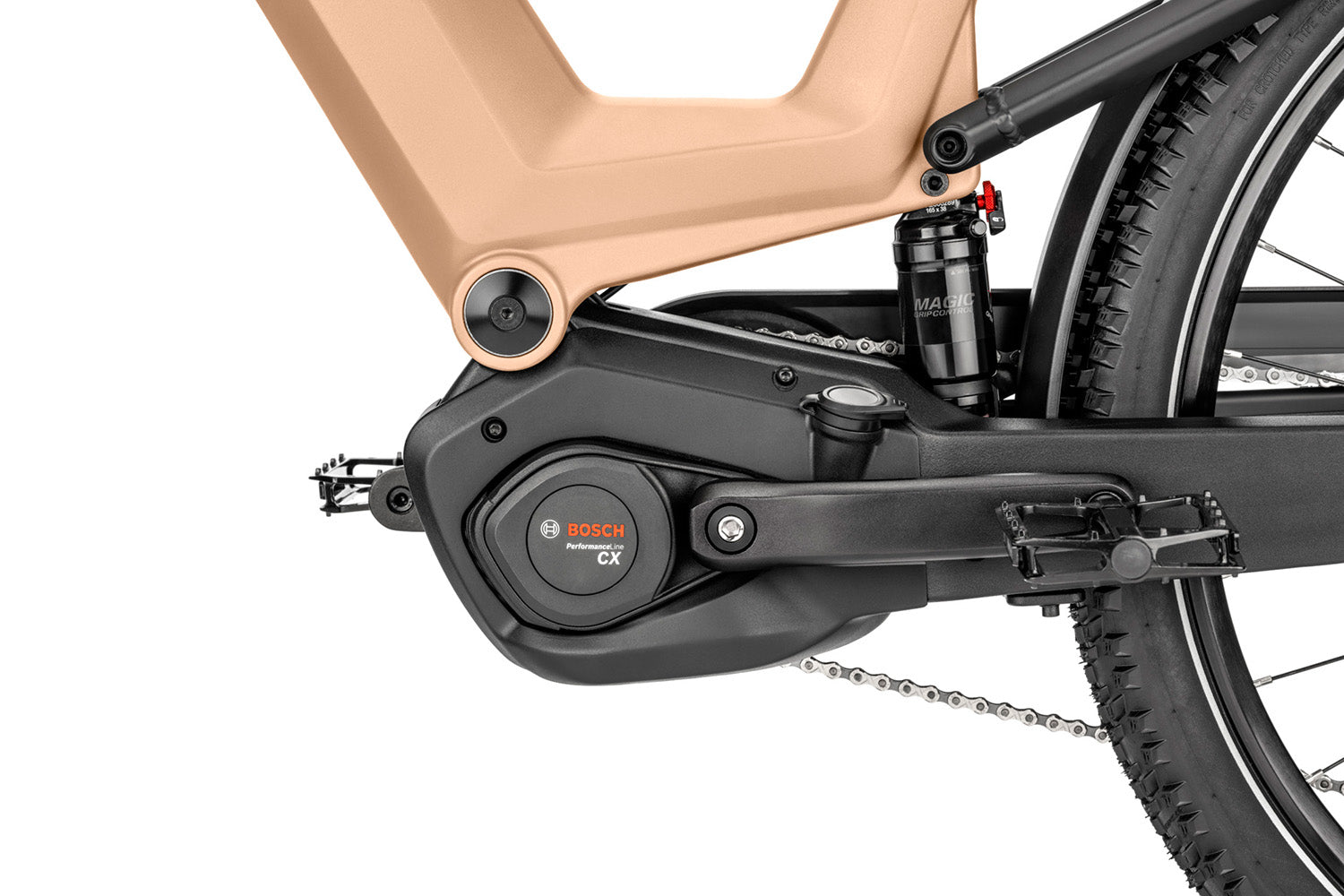

- Motor
- Bosch Performance Line CX (BDU384Y), Smart System, 120 Nm
- Battery
- Bosch PowerTube 600 Wh, Smart System
- Display
- Bosch Kiox 500, Smart System
- Remote
- Bosch LED remote Bluetooth
- Autonomy
- 133 km
- Conditions
- Maximum distance, calculated for a 70 kg rider in ideal conditions
- Charger
- Bosch, 4 Ah
- Transmission
- Rear derailleur
- Shimano CUES RD-U6020-11, 11-speed
- Chainring
- Narrow-Wide, 38 teeth
- Cassette
- Shimano CUES CS-LG400 11-speed, 11-45T
- Chain
- Shimano LG500, 130 links
- Shifter
- Shimano CUES SL-U6000-11R, 11-speed
- Cranks
- Stronglight, aluminium, 170 mm, ISI
- Brakes
- Front brake
- Magura MT Thirty, hydraulic disc, 4 pistons
- Rear brake
- Magura MT Thirty, hydraulic disc, 2 pistons
- Front rotor
- Magura MDR-C, 180 mm
- Rear rotor
- Magura MDR-C, 180 mm
- Wheels
- Front hub
- Shimano, 32H, 15 x 110 mm, thru axle
- Rear hub
- Shimano, 32H, 15 x 100 mm, thru axle
- Front rim
- Alloy, 32 holes, 27.5″, internal width 27 mm
- Rear rim
- Alloy, 32 holes, 27.5″, internal width 27 mm
- Front tyre
- Schwalbe Smart Sam, 27.5 x 2.35, reflective
- Cockpit
- Handlebar
- Moustache ergonomic alloy handlebar, 660 mm, 30° backsweep
- Stem
- Moustache alloy adjustable stem, 65 mm
- Headset
- Acros AZF-699, sealed bearings, internal routing, blocklock
- Grips
- SB3 ergonomic
- Saddle
- Selle Royal Essenza+ Moderate

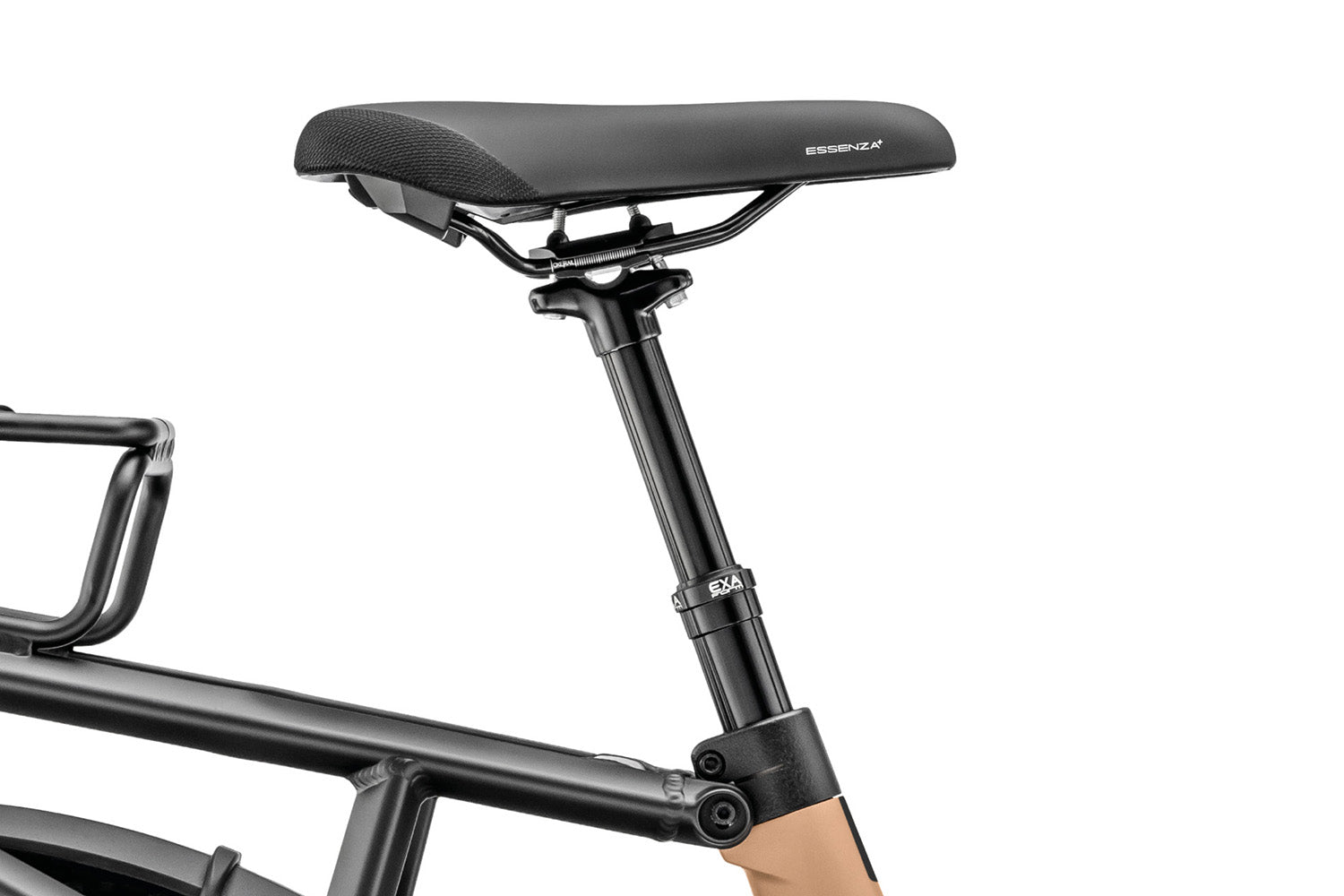

- Seatpost
- EXA 900i dropper post with remote lever, 31.6 mm, 75 mm
- Seatclamp
- Moustache alloy, 34.9 mm
- Equipment
- Front light
- AXA NXT, 80 lux, powered by main battery
- Rear light
- Spanninga Presto2Guard, powered by main battery
- Horn
- Spanninga Minibell Black
- Lock
- Battery lock ABUS XPlus, One-Key option; AXA Block XXL frame lock
- Kickstand
- Moustache adjustable
- Mudguard
- Moustache alloy, double-wall design, with alloy stays
- Carrier
- Moustache alloy suspended carrier, removable QL3 lateral fixation, MIK HD platform
- Pedals
- Alloy platform with reflectors
- Features
- Size
- S
- Colour
- Marine blue mat
- Weight
- 29.5 kg
- GVWR
- 160 kg
- Warranty
- Warranty
- 5 years frame and fork Moustache Bikes; 2 years motor and battery
Prices and product specifications may change without prior notice. Non-contractual information.
