- Frame
- Frame
- Lundi 20 low step-over, 6061 T4-T6 alloy, hydroformed and extruded triple cavity tubes for optimal stiffness. Integrated cable routing. Optimal geometry for stable handling and great manoeuvrability.
- Suspensions
- Fork
- SR Suntour Mobie 34 Suspension Fork, designed to withstand the forces of cargo use. 70 mm travel with lockout function. Boost spacing.
- Motor system
- Motor
- Bosch Cargo Line, Smart System, 85 Nm
- Battery
- Bosch PowerPack 545 Wh included; 800 Wh upgrade option, Smart System
- Remote
- Bosch Purion 200, Smart System
- Autonomy
- 100 km with 545 Wh battery; 139 km with 800 Wh battery
- Conditions
- Maximum distance calculated for a 70 kg rider with 70 kg payload in ideal conditions
- Charger
- Bosch, 2 Ah
- Transmission
- Chainring
- Gates, 55T
- Cassette
- Gates, 22T
- Chain
- Gates CDX belt, clean, smooth and resistant
- Shifter
- Enviolo PRO rotating handle with visual indicator
- Cranks
- Moustache aluminium, 170 mm, compatible with Gen2 / Gen4 motor
- Brakes
- Front brake
- Magura MT4 hydraulic disc
- Rear brake
- Magura MT4 hydraulic disc
- Front rotor
- Magura MDR-C, 203 mm
- Rear rotor
- Magura MDR-C, 180 mm
- Wheels
- Front hub
- Moustache, 32H, 15 x 110 mm, thru axle
- Rear hub
- Enviolo HD 380%, 32H, 12 x 148 mm, nut
- Front rim
- Moustache asymmetric alloy 6061E, welded, 32 holes, 20", internal width 35 mm
- Rear rim
- Moustache asymmetric alloy 6061E, welded, 32 holes, 20", internal width 35 mm
- Front tyre
- Schwalbe Pick-Up, 20 x 2.35, Super Defense
- Cockpit
- Handlebar
- Moustache Lundi custom ergonomic alloy handlebar
- Headset
- NO.55R/57SC
- Grips
- Ergonomic, dual-density
- Saddle
- Selle Royal Essenza Moderate Lady
- Seatpost
- Limotec A3 suspended and telescopic aluminium seatpost, 34.9 mm diameter, 100 mm amplitude, 40 mm suspension
- Seatclamp
- Moustache alloy, 34.9 mm
- Equipment
- Equipment level
- Equipped
- Equipped setup
- Sturdy aluminium protective bar, integrated footrests
- Front light
- AXA NXT, 30 lux, powered by main battery
- Rear light
- AXA Duo Flat, increased brightness under deceleration, powered by main battery
- Horn
- Spanninga Minibell Black
- Lock
- AXA Imenso
- Kickstand
- Moustache central wide-support kickstand for better stability, pedal activated
- Mudguard
- Front: Moustache alloy double-wall design with alloy stays and mudflap; rear: PP, 180° lateral protection

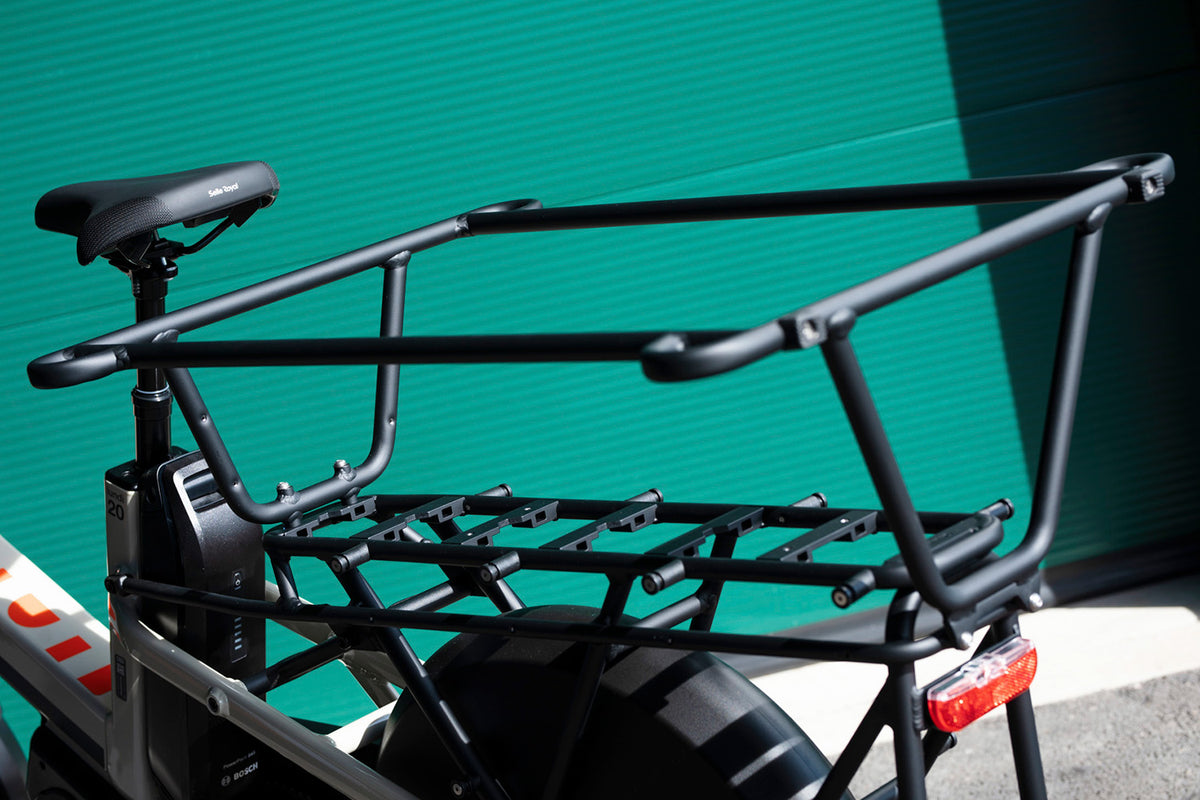

- Carrier
- Moustache alloy exclusive longtail design with integrated footrests, removable side fastenings for QL3 luggage, multiple MIK HD platform, up to 70 kg load capacity

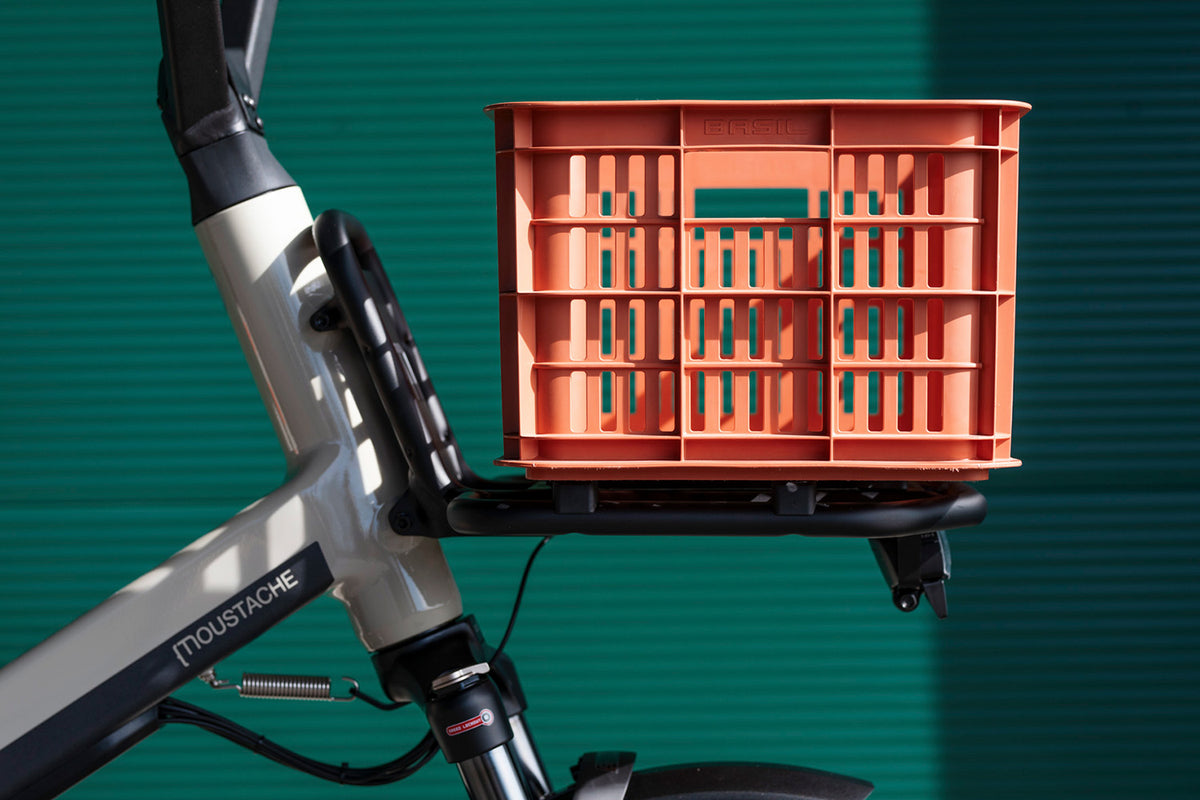

- Front carrier
- Moustache alloy front carrier, compatible with MIK baskets and accessories
- Pedals
- Alloy platform with reflectors
- Features
- Model
- Lundi 20 Cargo 5
- Size
- TU
- Colour
- Silk Grey
- Weight
- 32 kg
- GVWR
- 200 kg
- Warranty
- Warranty
- 5 years frame and fork Moustache Bikes; 2 years motor and battery
