THE ELECTRIFYING COMMUTER

THE ELECTRIFYING COMMUTER

Urwahn

Urwahn Top Dog E from:

£4,949.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Urwahn Top Dog E from:

Brand:Urwahn

Code:URWALPHMCUST

1: Send an e-mail to your nearest Flying Dutchman store with your chosen configuration (Urwahn Bike Configurator)

2: We will contact you regarding your configuration to discuss the specifications and any other accessories (e.g. locks, trackers, phone mounts, bags etc.)

4: Once finalised, we will need to know how you would be paying for the bike (e.g. bank transfer, credit card, cycle scheme, etc.)

5: We will then send a quote based on everything that we have discussed. Once this is finalised and we have received a deposit, we will process your order with the factory.

*Depending on specifications, the delivery time can range from a couple of days to around eight weeks. We will try to give you an accurate estimate while we are putting your order together.

Technical Information

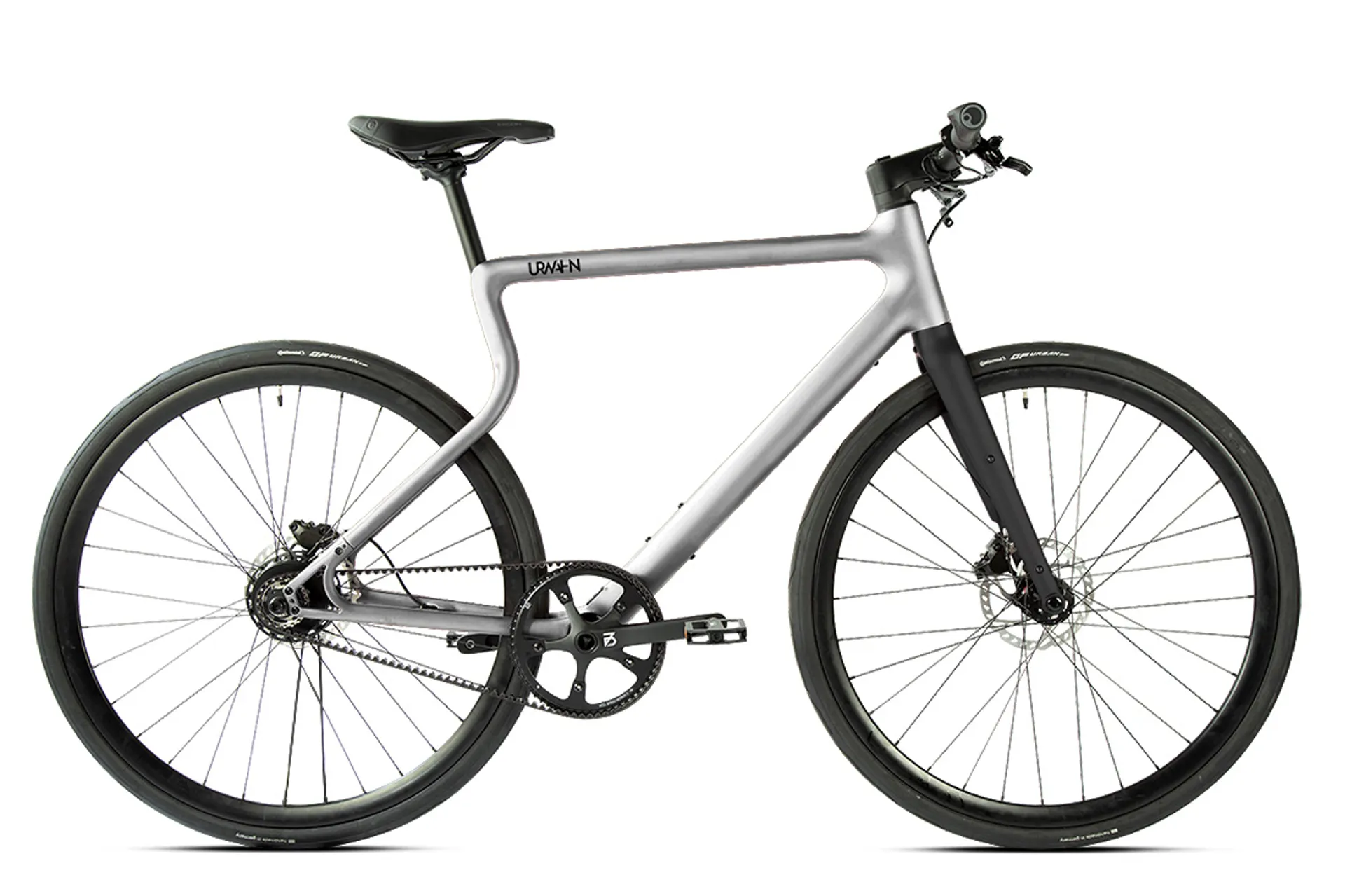

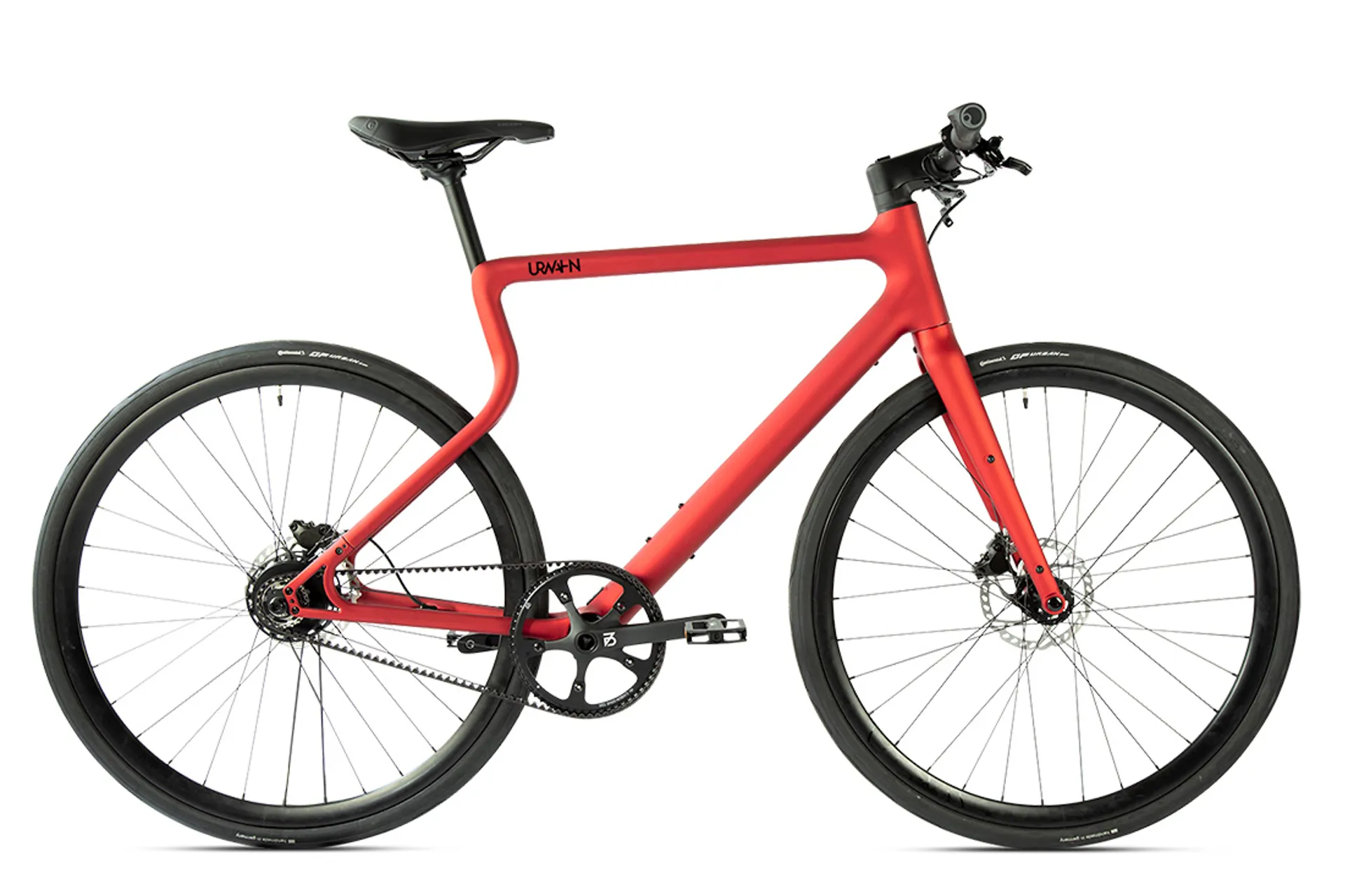

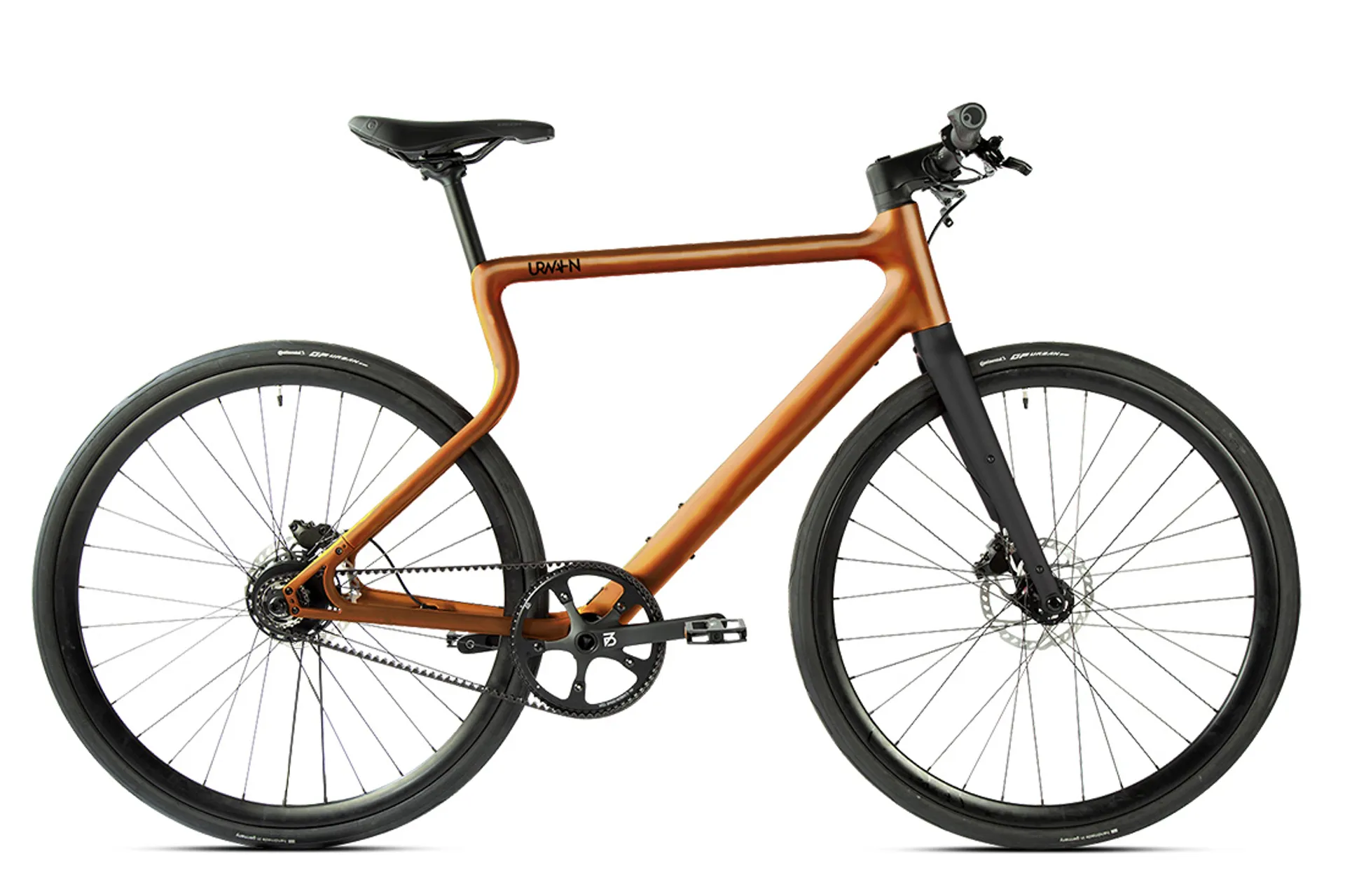

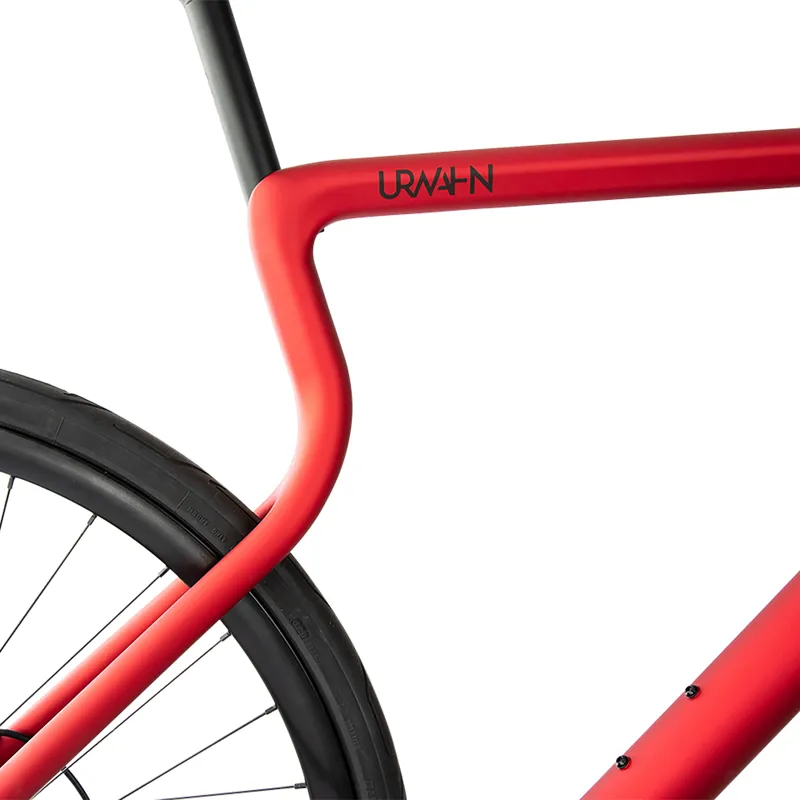

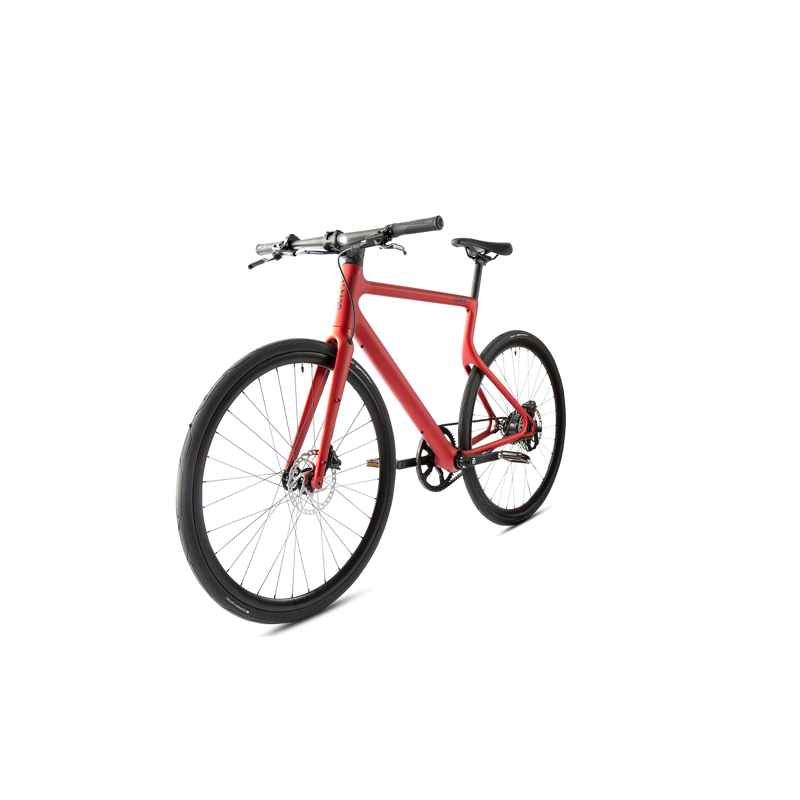

FRAME: Urwahn CT1-FR1 | steel | integrated beltport | integrated flatmount | internal cable routing

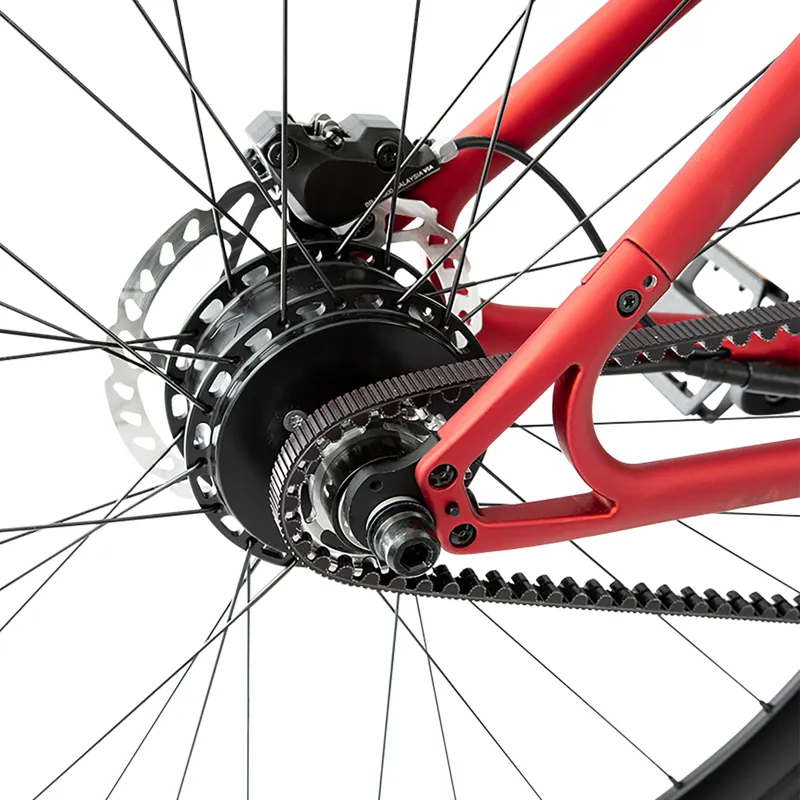

ENGINE: MAHLE ebikemotion rear wheel hub motor | 250W power | 40Nm torque | up to 25km/h support

REMOTE CONTROL: MAHLE ebikemotion iWoc TRIO | 3-stage | mounted on the handlebar

BATTERY: MAHLE ebikemotion | integrated in down tube | 250Wh capacity (up to 80km) | maintenance via bottom bracket

RANGE EXTENDER: MAHLE ebikemotion | 208Wh (up to 60km) | mounting at bottle cage

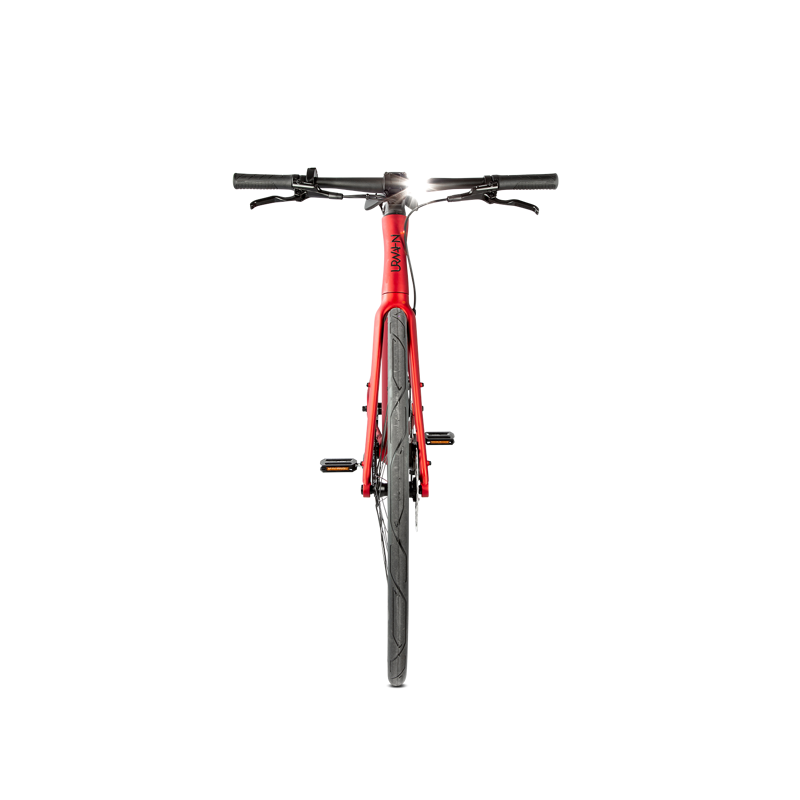

FRONT LIGHT: LightSKIN handlebars with integrated headlight | StVZO compliant

BACK LIGHT: LightSKIN seat post with integrated rear light | StVZO compliant

FORK: Urwahn CT1-FS1 | tapered | integrated flatmount | internal cable routing

HEADSET: Acros AIX-525 IS | internal cable routing | fully integrated

BRAKING SYSTEM: Shimano BL-MT200 Disc | hydraulic | flatmount | 160mm

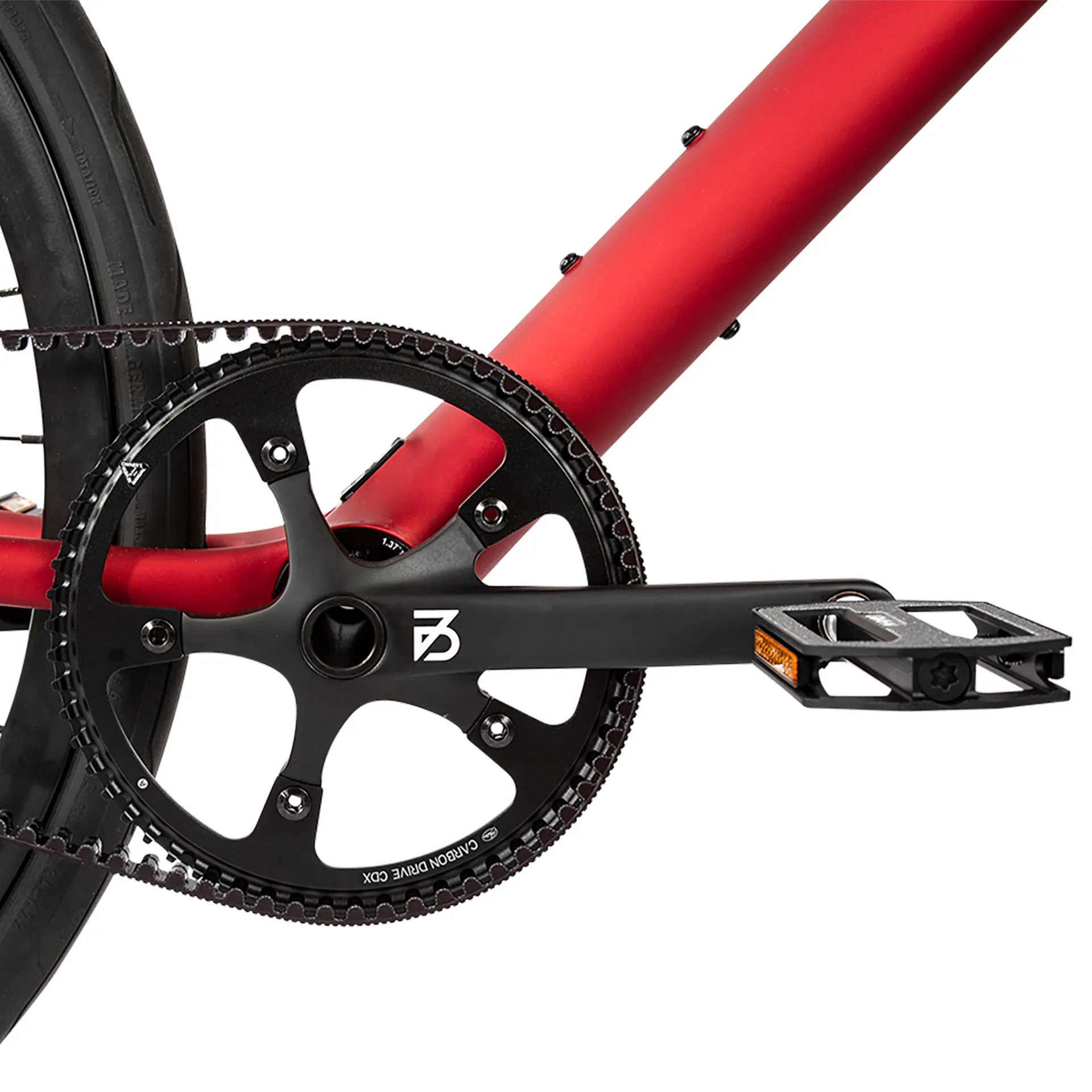

DRIVE SYSTEM: Gates Carbon belt drive system | CDX

CRANKSET: Urwahn CT1-CR1 | 160 or 170mm | hollowcore | LK 5x130 | BSA

BOTTOM BRACKET: Acros A-BB R2 | hollowcore | BSA

HUBSET: Urwahn 6L Disc 12x100mm TA | MAHLE ebikemotion 40Nm engine 6L Disc 12x135mm threaded

RIMS: Ryde Dutch 19 Disc | 32L | 19-622mm

TIRES: Continental Grand Prix Urban | 35-622mm | black reflective stripes

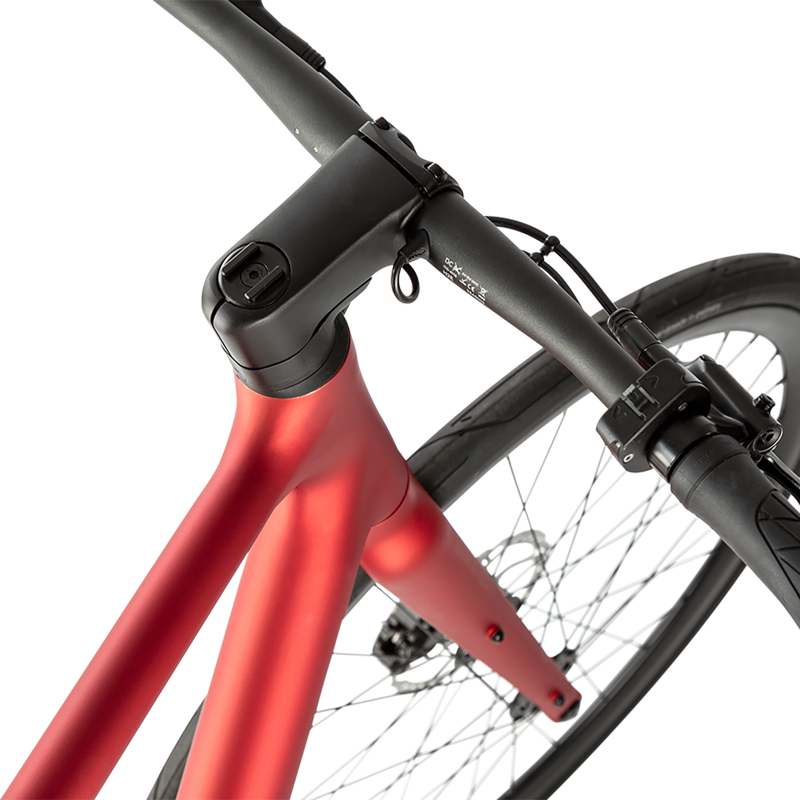

HANDLEBAR: LightSKIN | 31.8mm | width individual fitted to frame size

STEM: Satori Viper with Acros ICR | 31.8mm

GRIPS: Ergon GA30 stealth edition

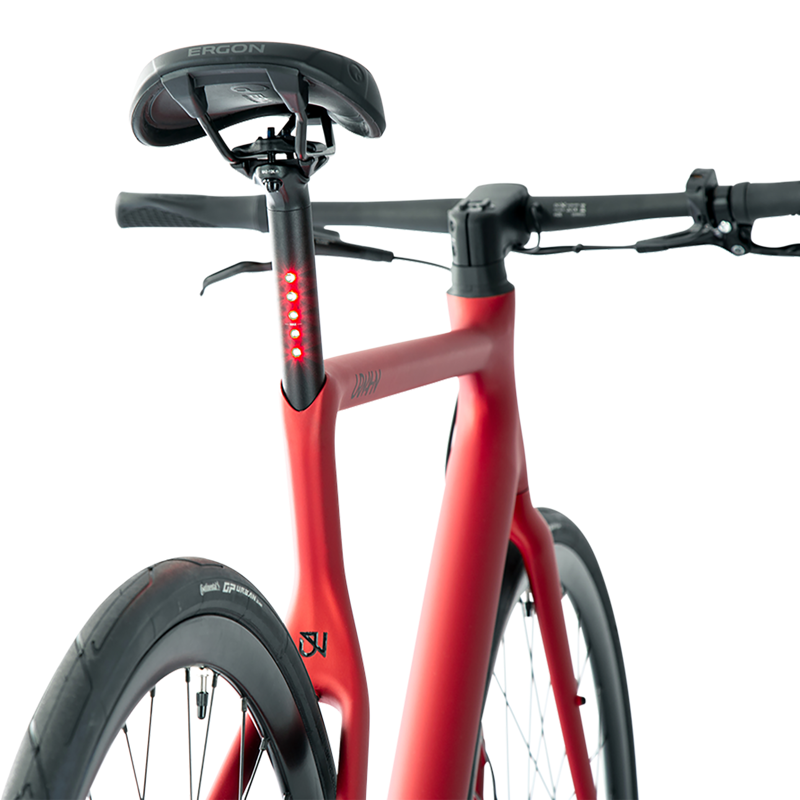

SEAT POST: LightSKIN with 5-Dot LED Matrix | 27.2mm

SEAT: Ergon SFC30 EVO Gel stealth edition

PEDALS: Urwahn CT1-PD1 | plattform with griptape

FRAME SIZES: XS | S | M | L | XL

FRAME COLOURS: asphalt | concrete I oxid I cobalt | gold

WEIGHT: approx. 14,0 kg (Size M)

Sizing Information
FRAMESIZES: XS 47.9cm | S 49.2cm | M 50.5cm | L 51.8cm | XL 53.1cm
