Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size

Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size-1

Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size-2

Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size-3

Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky.

Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky.

Tern

Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size

£5,200.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Returns

Under exceptional circumstances, and only at the Seller’s discretion, some Goods can be returned on the condition that a 35% restocking fee is covered by the Buyer. Unlimited additional charges to the Buyer may also be incurred dependent on the condition of the Goods returned. It is the Seller’s prerogative to determine the sum of any additional costs over and above the 35% restocking fee. The Buyer is responsible for returning the Goods to the Seller, and for ensuring they are returned in a saleable condition, including a Sales Receipt and original packaging. Refunds can only be processed upon Seller’s receipt of the returned Goods, and only after the returned Goods are inspected and assessed for wear and/or damages.

The Seller cannot accept any returns on custom-ordered Goods. Custom-ordered Goods include any and all bicycles, parts, and/or equipment that need to be ordered in to the shop specifically to meet Buyer's requirements or demands (e.g. bikes, components, or equipment not typically stocked and specially ordered in specific colours, sizes, or designs).

Tern HSD S00 Gen2 545wh Performance Line eBike Dark Sage one size

Brand:Tern

Code:TERNHSDS00DS

What makes it an S00?

Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
Kiox 300 color display that automatically activates eBike Lock when removed from the bike
Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter
Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

Technical Information

GENERAL INFO

SPEEDS:

∞

WEIGHT:

29.4 kg (64.8 lb)

GEAR INCHES:

28" - 106" (2.23 - 8.47 m)

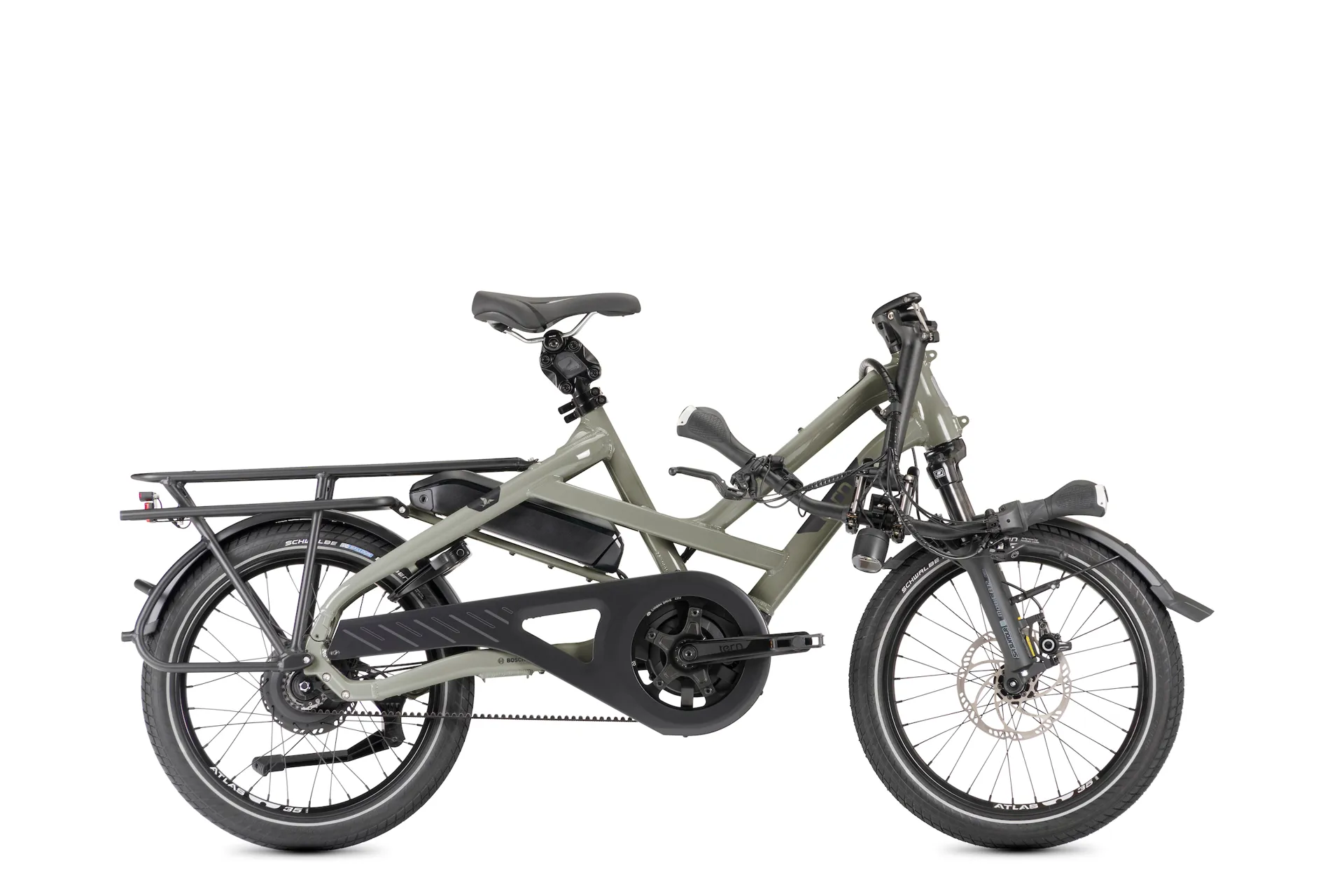

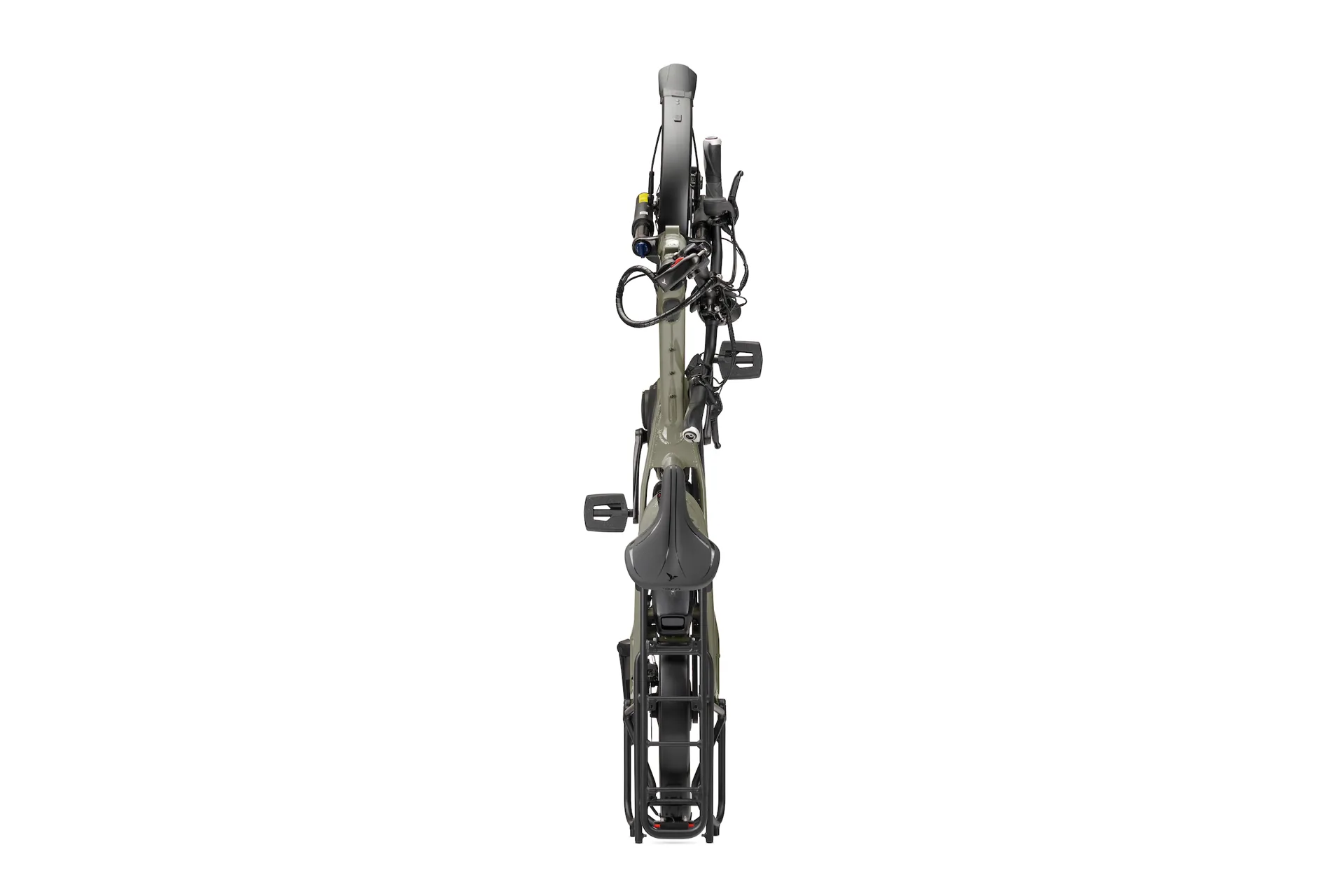

FOLDING SIZE:

165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)

FOLDING TIME:

5 seconds

FRAME SIZES:

One size

DISTANCE: SEATPOST TO HANDLEBAR:

52 - 62.5 cm (20.5 - 24.6 in)

DISTANCE: SADDLE TO PEDAL:

76 - 110 cm (29.9 - 43.3 in)

SUGGESTED RIDER HEIGHT:

150 - 195 cm (59.1 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:

180 kg (396.8 lb)

MAX RIDER WEIGHT:

120 kg (264.6 lb)

FRAME

FRAME:

Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg

FORK:

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

COCKPIT

HANDLEPOST:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

STEM:

Tern Andros, adjustable, forged construction, patented technology

HEADSET:

Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated

HANDLEBAR:

Tern Sweep, 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE:

Ergon

SADDLE:

Tern Upright by Velo

SEATPOST:

Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm

SEATPOST CLAMP:

Tern Collar

BRAKES

FRONT BRAKE:

Magura MT4, hydraulic disc, 180 mm rotor

REAR BRAKE:

Magura MT4, hydraulic disc, 160 mm rotor

BRAKE LEVERS:

Magura MT4 e-stop, hydraulic, with brake light sensor

BRAKE CABLE & HOUSING:

Magura, hydraulic

WHEELS

FRONT WHEEL:

Tern Atlas H, cargo wheel

REAR WHEEL:

Tern Atlas H, cargo wheel

FRONT HUB:

Novatec, Thru-axle, sealed bearings

REAR HUB:

Enviolo Heavy Duty, 380% continuously variable range

SPOKES & NIPPLES:

Stainless steel, double-butted

RIMS:

Tern Atlas H, wide 35 mm

TIRES:

Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification

TRANSMISSION

SHIFTER(S):

Enviolo, Twist

CRANKSET:

Tern HSD custom, Gates CDX CNC machined beltring

CASSETTE/FREEWHEEL:

Gates CDX, precision CNC machined cog

BOTTOM BRACKET:

Motor integrated

CHAIN:

Gates Carbon Drive CDX belt

PEDALS:

Urban with non-slip surface, sealed bearings

E-SYSTEM

MOTOR:

Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY:

Bosch PowerPack 545

DISPLAY:

Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock

LOCK & ALARM:

Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

RANGE:

545 Wh: 51-121 km (32-76 mi)

CHARGER:

220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES

BELL:

Pitch Plus, brass

CHAINGUARD:

Tern Custom, full chain cover

KICKSTAND:

Ursus, rear mount

LUGGAGE SOCKET:

Combo Mount

FRONT LIGHT:

Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

REAR LIGHT:

RearStop Brake Light, Always on

FENDERS:

SKS, stainless hardware

RACK(S):

Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

FRAME LOCK:

ABUS, keyed-alike with Bosch battery
