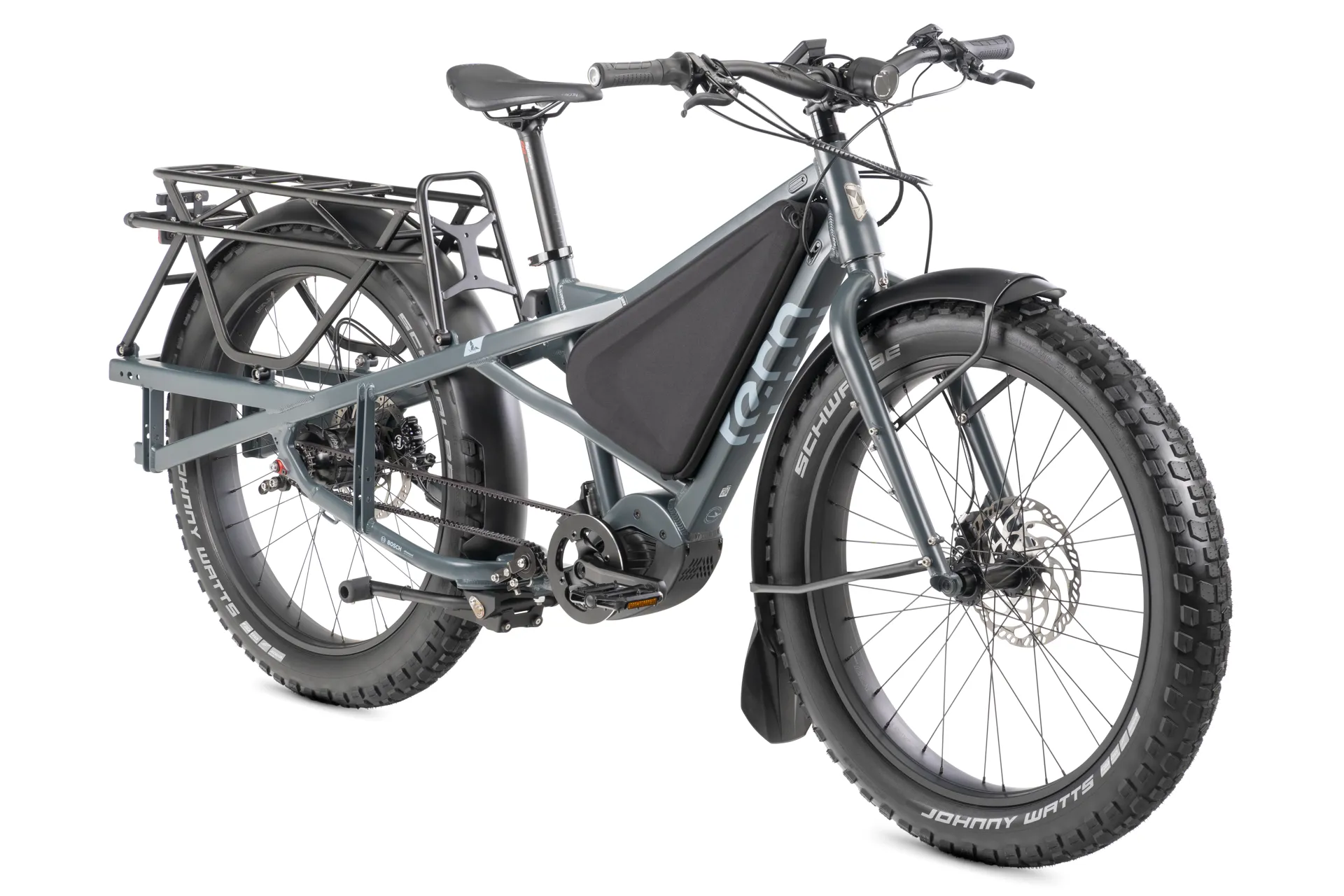

Tern Orox R14 27.5 Graphite

Brand:Tern

Code:24_OROX_R14_27_GRANITE_

Go Anywhere

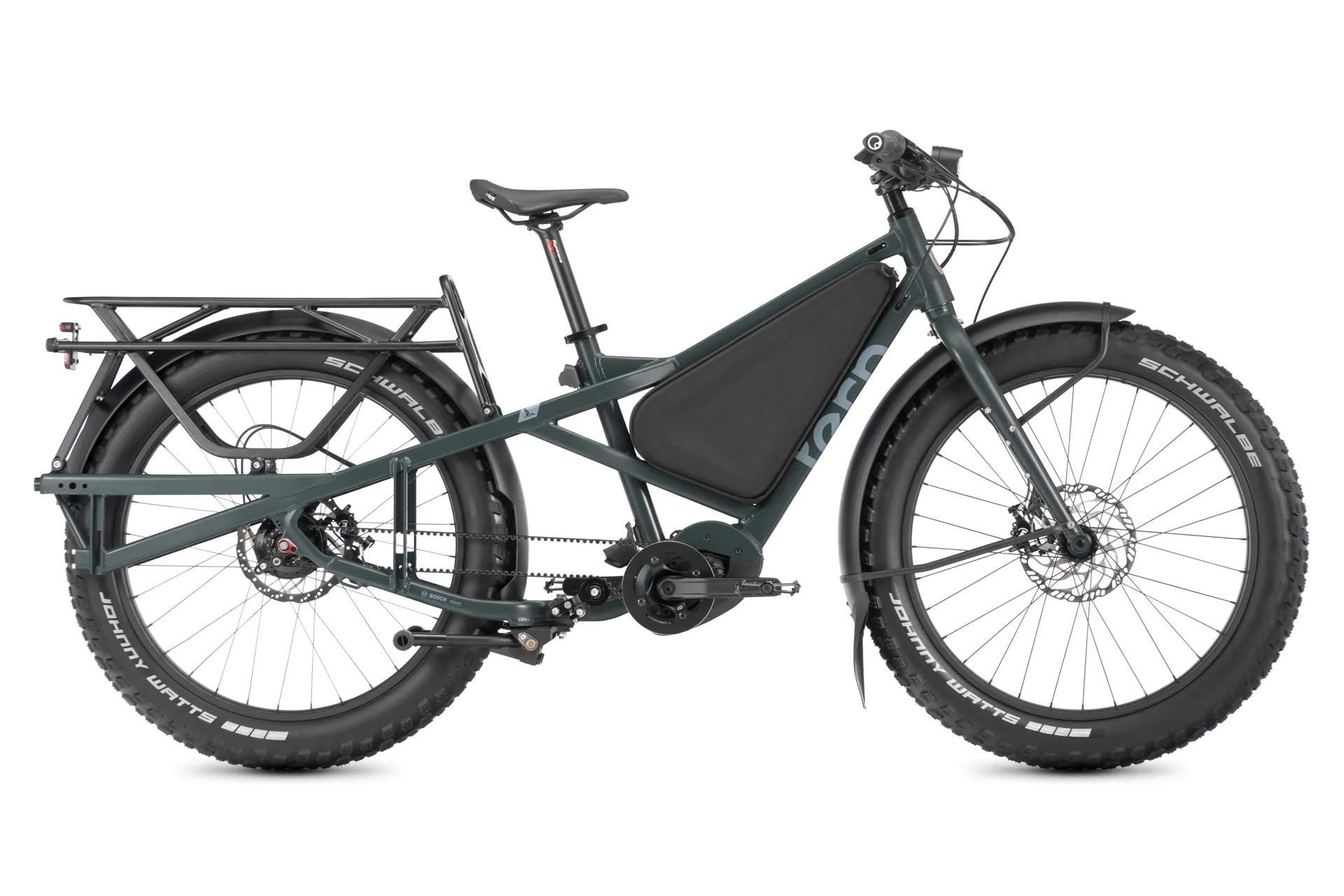

The Tern Orox is a 4-season adventure cargo bike ready for anything.

Traditional cargo bikes face limitations on unpaved roads, while off-road bikes struggle to carry substantial cargo. The Tern Orox brings cargo bike utility to any type of terrain. With large-volume tires and a powerful Bosch motor, Orox offers excellent traction and comfort on the most challenging surfaces. Whether it’s negotiating poorly maintained urban streets during the week or heading out for a weekend overnight at a remote lake, Orox can handle it all.

Combining the ruggedness of a mountain bike, versatility of a trekking bike, and utility of a cargo bike, Orox provides riders the freedom to craft their own unique experiences.

What makes it an R14?

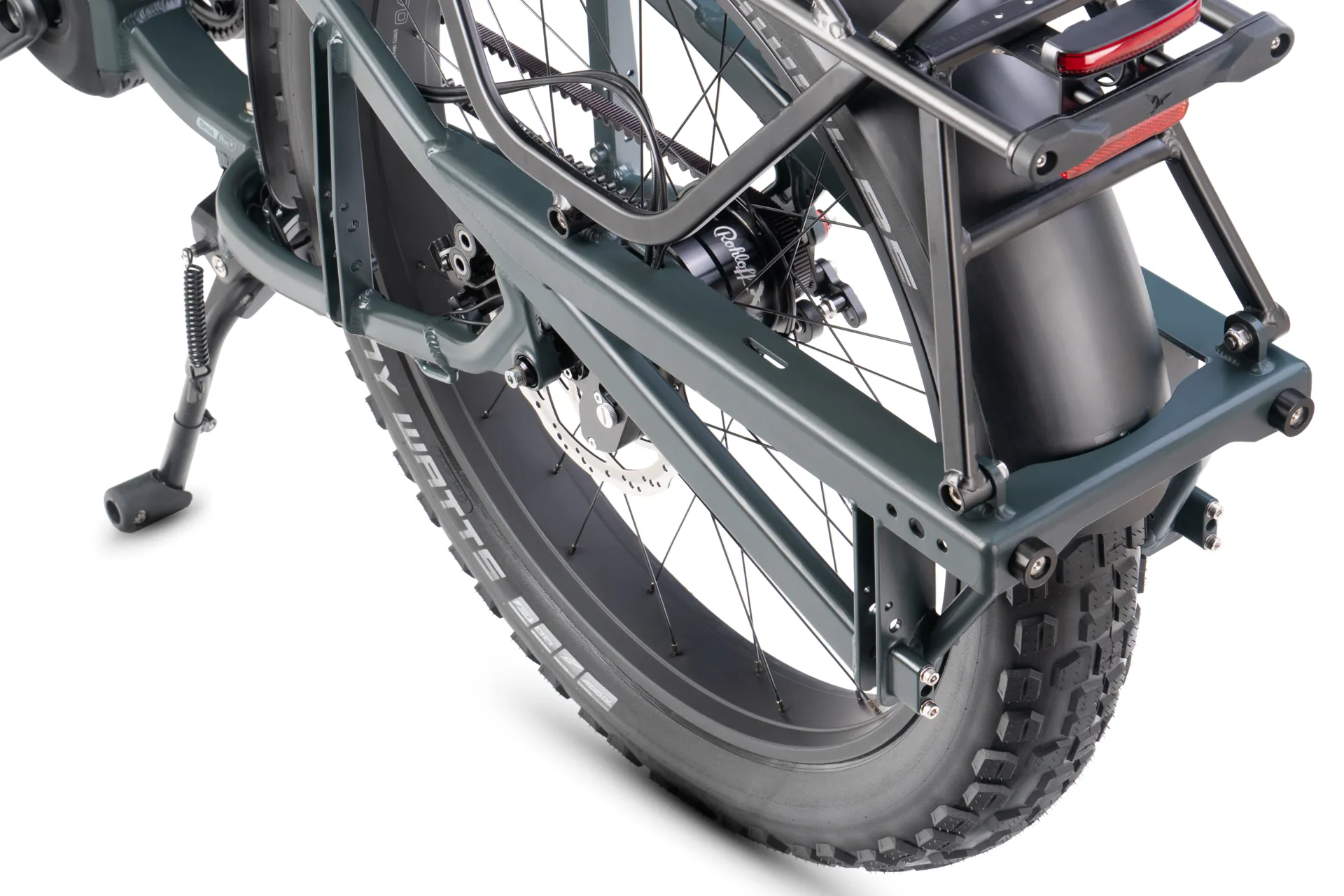

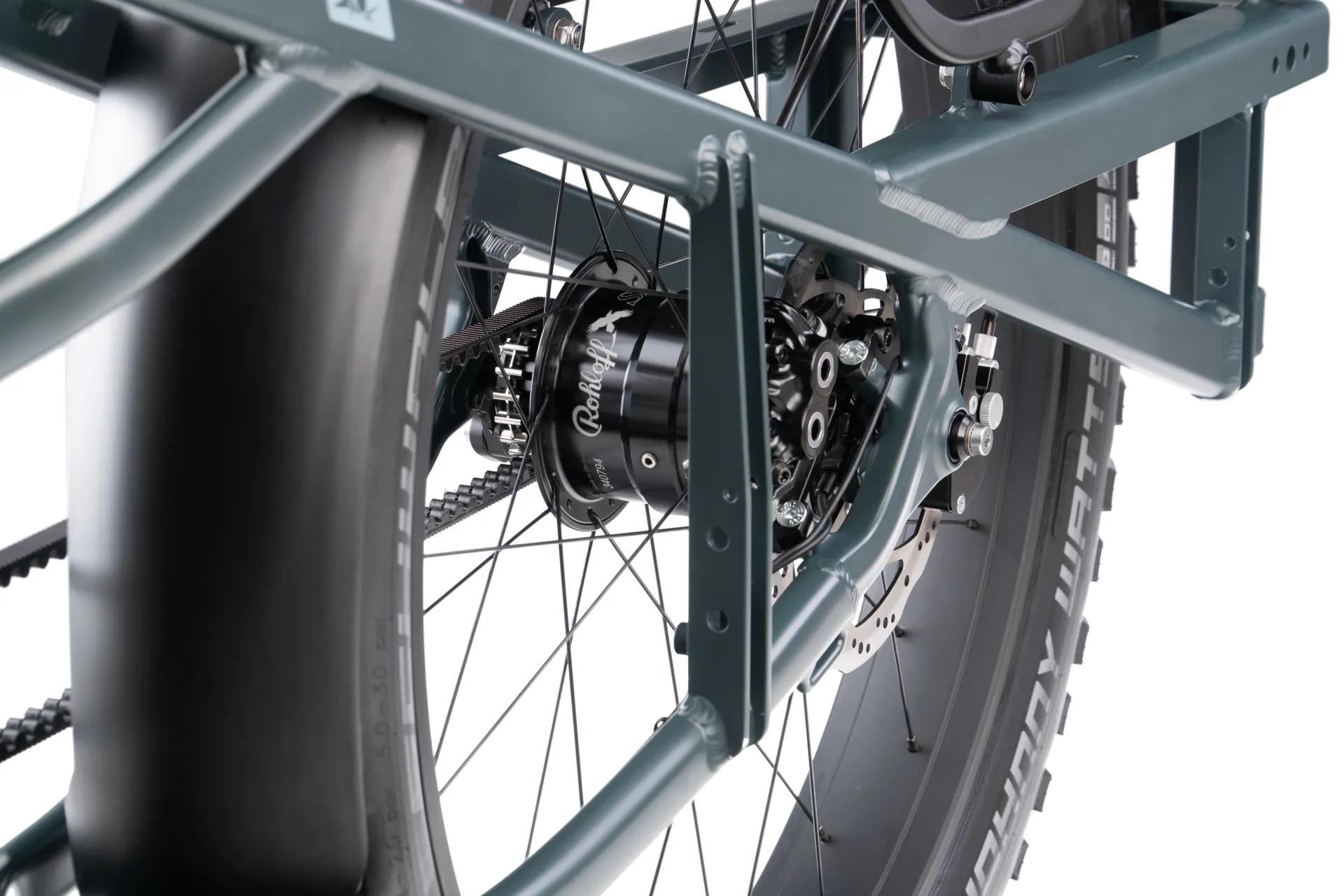

Highly-durable and virtually maintenance-free Rohloff Speedhub
Silent, smooth, and rust & grease-free Gates Belt Drive
Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions

Orox highlights

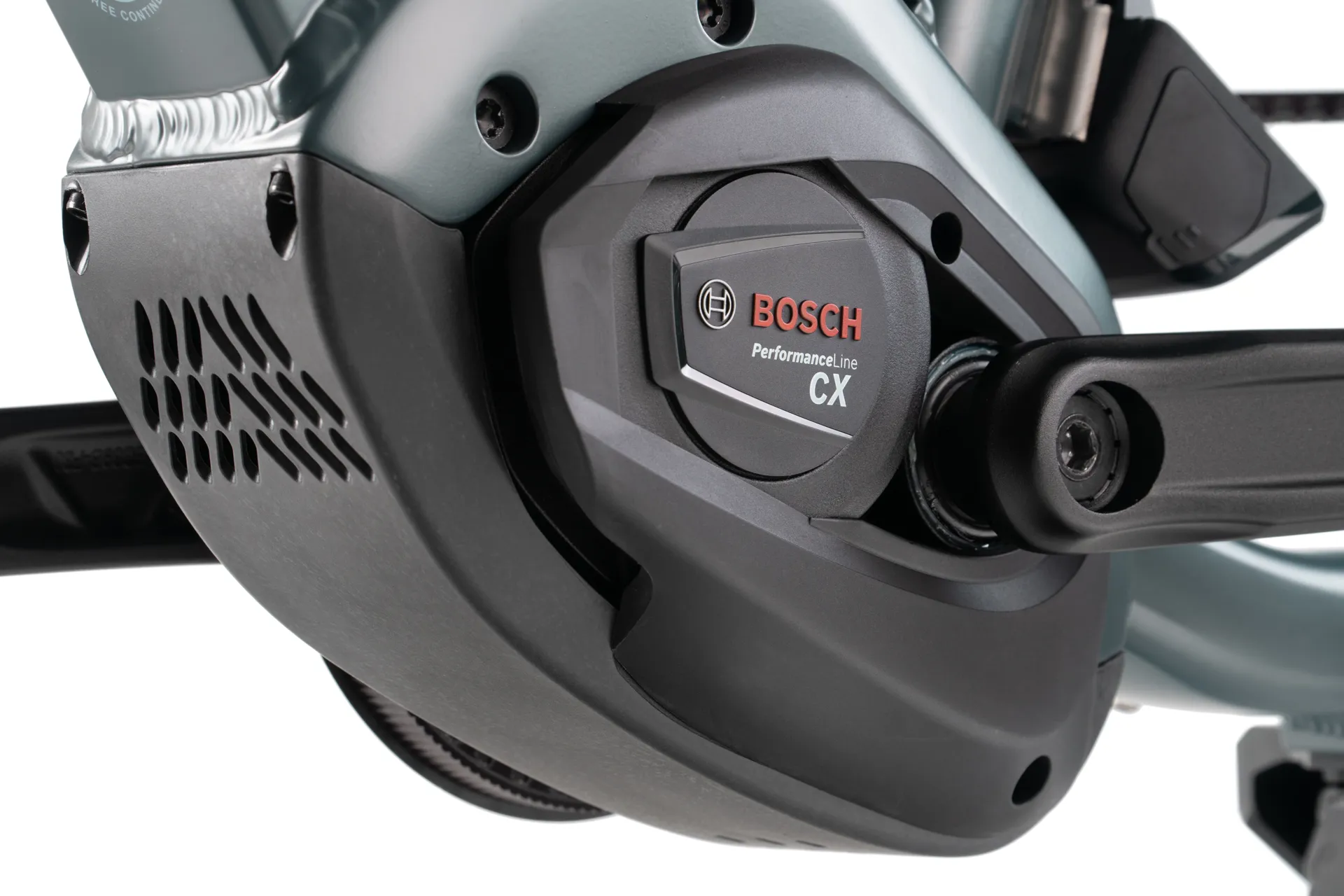

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

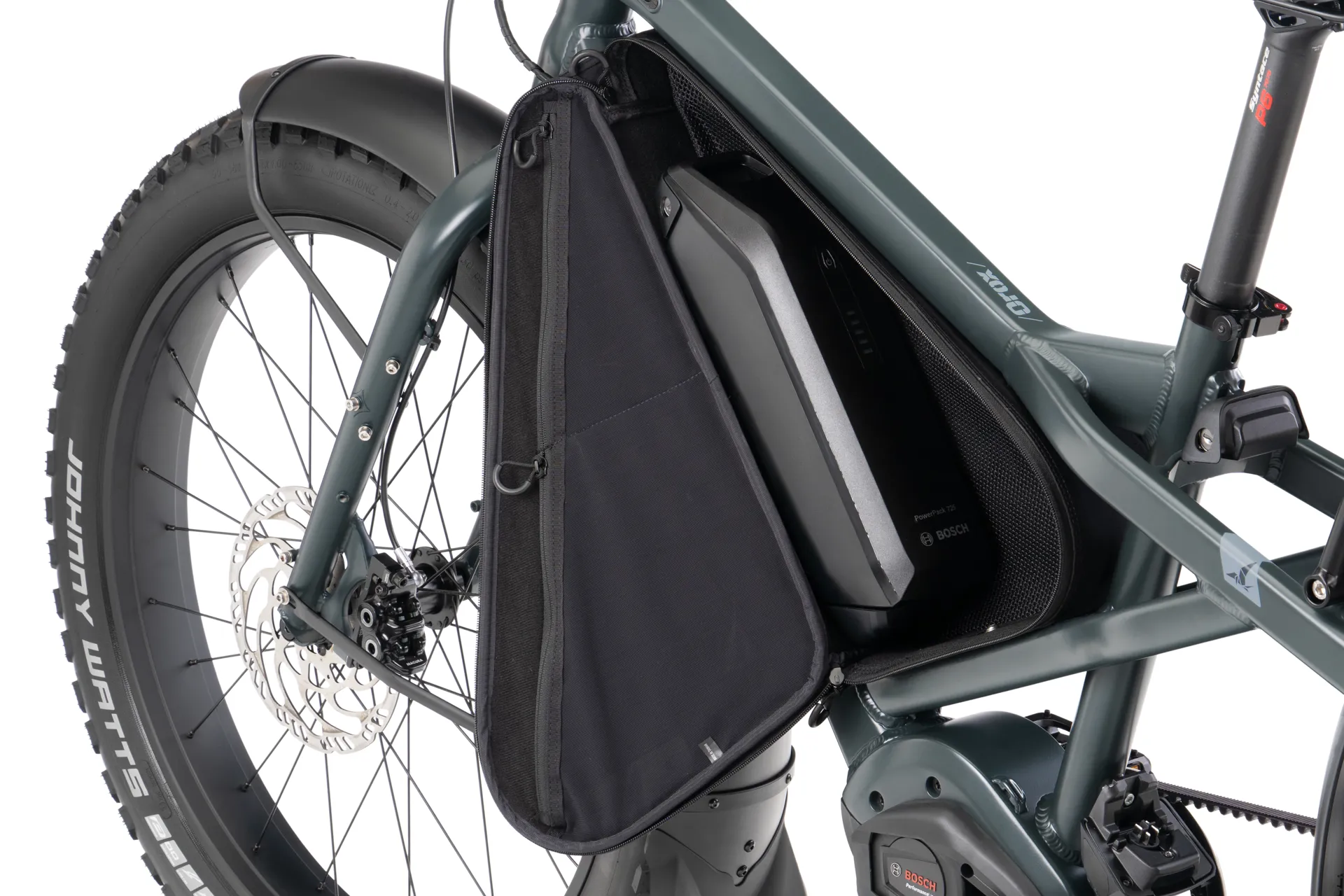

Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

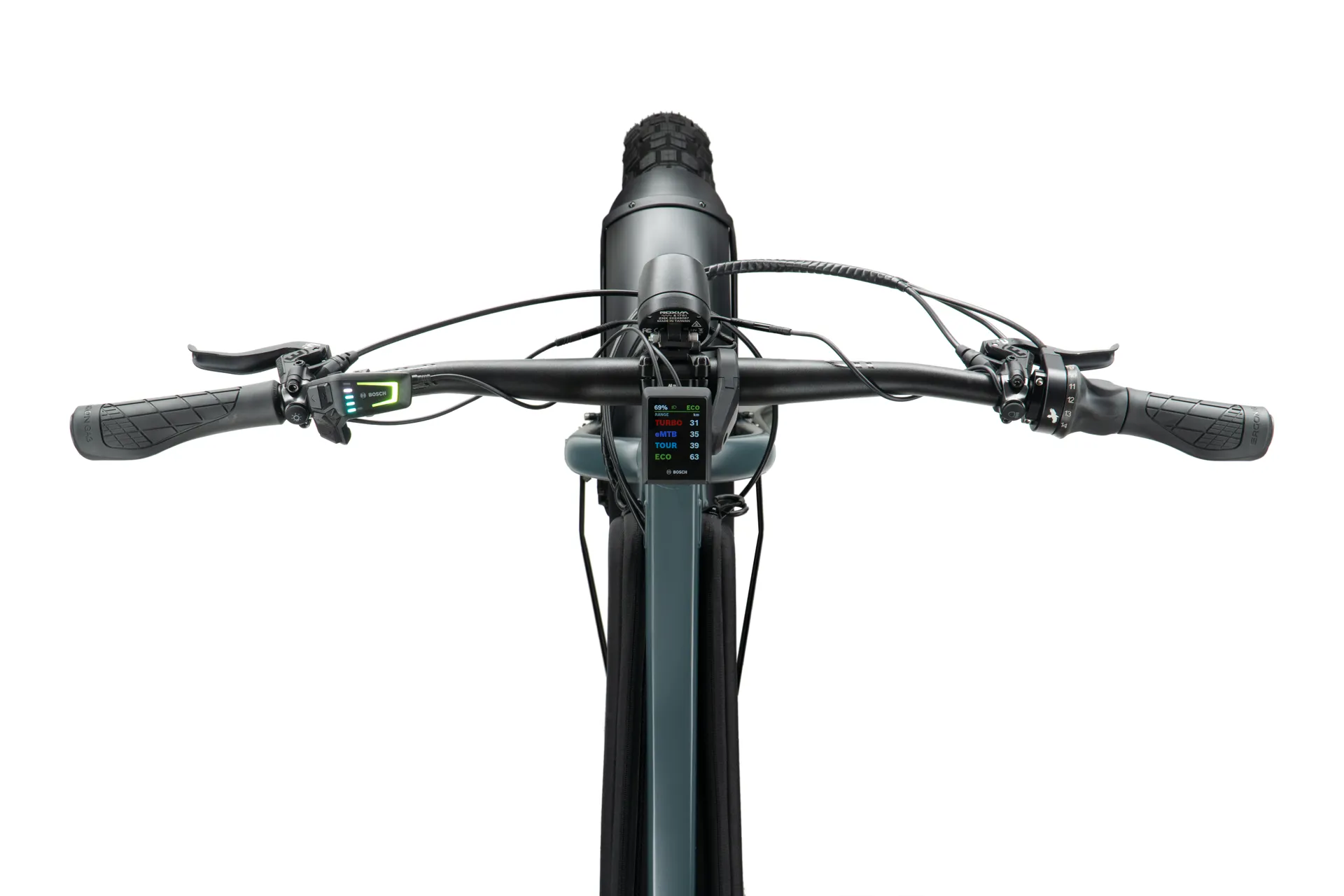

Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Technical Information

SPECIFICATIONS

GENERAL INFO

SPEEDS:

1 x 14

WEIGHT:

M: 33.8 kg (74.5 lb)

GEAR INCHES:

18" - 96" (1.45 - 7.64 m)

FRAME SIZES:

M, L

DISTANCE: SEATPOST TO HANDLEBAR:

M: 61 - 66 cm (24 - 26 in) ;

L: 67 - 73 cm (26.4 - 28.7 in)

DISTANCE: SADDLE TO PEDAL:

M: 71 - 99 cm (28 - 39 in) ;

L: 76.5 - 104.5 cm (30.1 - 41.1 in)

SUGGESTED RIDER HEIGHT:

M: 155 - 185 cm (61 - 72.8 in) ;

L: 165 - 195 cm (65 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:

On-road: 210 kg (463 lb) ;

Off-road: 180 kg (396.8 lb)

MAX RIDER WEIGHT:

130 kg (286.6 lb)

FRAME

FRAME:

Tern Orox, 6061-AL, patented design, EFBE tested and approved

FORK:

Atlas X, butted chromoly steel, EFBE tested and approved

COCKPIT

STEM:

Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified

HEADSET:

FSA, 1.5", angular contact bearings

HANDLEBAR:

Level Nine, AL-7050, 800 mm, riser, eMTB approved

GRIPS/BAR TAPE:

Ergon

SADDLE:

Ergon SM, E-Mountain Sport, CrMo Rail

SEATPOST:

Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved

SEATPOST CLAMP:

Tern Collar

BRAKES

FRONT BRAKE:

Magura MT5, 4-piston hydraulic disc, 203 mm rotor

REAR BRAKE:

Magura MT5, 4-piston hydraulic disc, 203 mm rotor

BRAKE LEVERS:

Magura MT5, hydraulic

BRAKE CABLE & HOUSING:

Magura, hydraulic

WHEELS

FRONT WHEEL:

Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

REAR WHEEL:

Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

FRONT HUB:

Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx

REAR HUB:

Rohloff, 526% range, Boost

SPOKES & NIPPLES:

Stainless steel

RIMS:

Tern Atlas X, custom doublewall construction

TIRES:

Schwalbe Johnny Watts 27.5" x 4"

TRANSMISSION

SHIFTER(S):

Rohloff, Twist

CRANKSET:

Tern Orox custom, Gates CDX CNC machined beltring

CASSETTE/FREEWHEEL:

Gates CDX, precision CNC machined cog

BOTTOM BRACKET:

Motor integrated

CHAIN:

Gates Carbon Drive CDX belt

PEDALS:

MTB, non-slip

SHIFTER CABLE & HOUSING:

Rohloff

E-SYSTEM

MOTOR:

Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY:

800 Wh, Bosch Dual Battery pack ready

DISPLAY:

Bosch Kiox 300 w/ LED remote, electronic bike lock

RANGE:

800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)

CHARGER:

220V, 4A (EU); 100-240V, 4A (US)

CONNECT MODULE:

Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

BELLS & WHISTLES

BELL:

Pitch Plus, brass

TOOL:

Thru-axle lever, 4/5 mm, Torx 2.5 mm

CHAINGUARD:

Custom Bash Guard

PAINT PROTECTION:

ToughShield film on top and downtube, self-healing

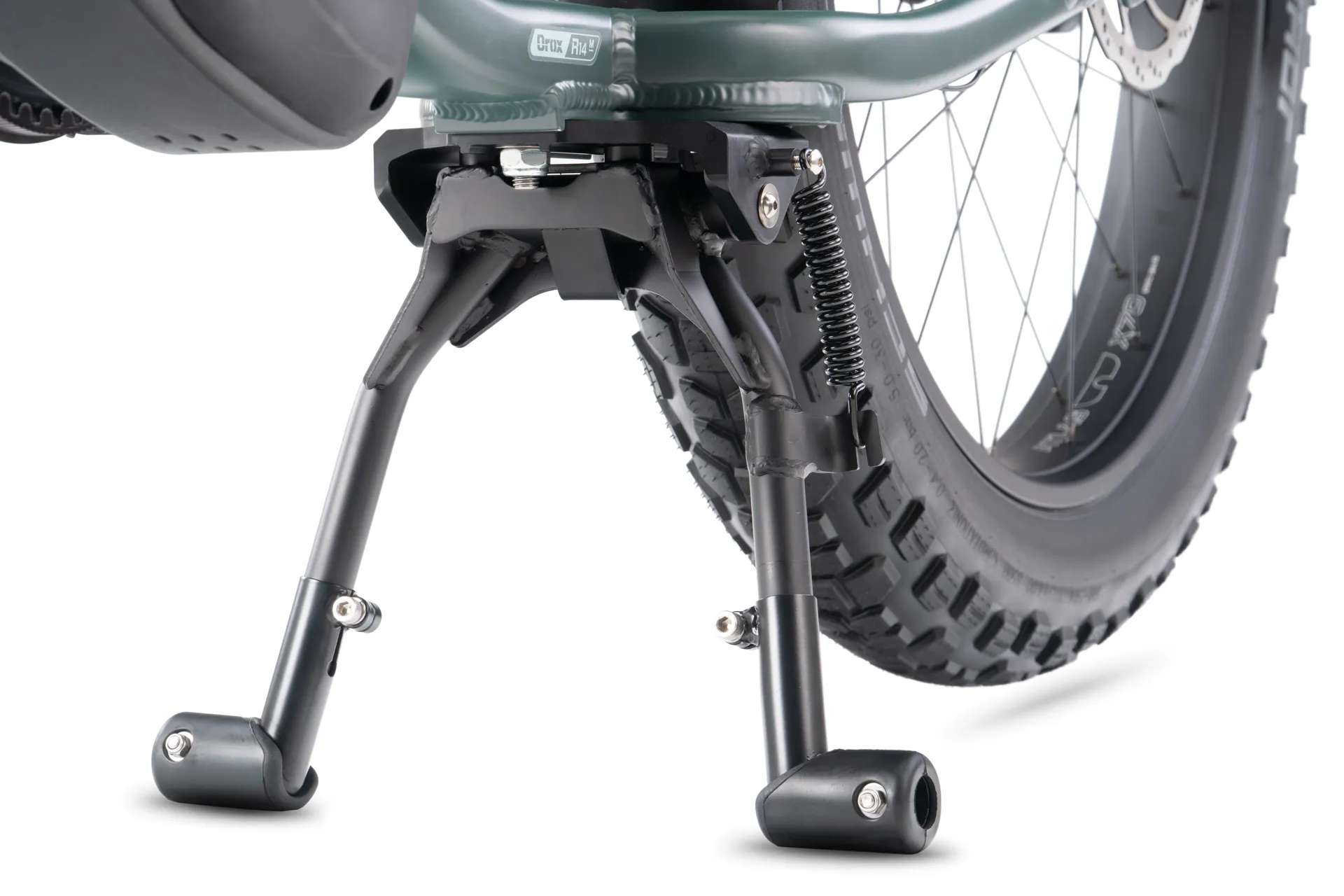

KICKSTAND:

Atlas Kickstand XL Cargo ready

FRONT LIGHT:

Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

REAR LIGHT:

LED w/ G-Sensed Brake Light

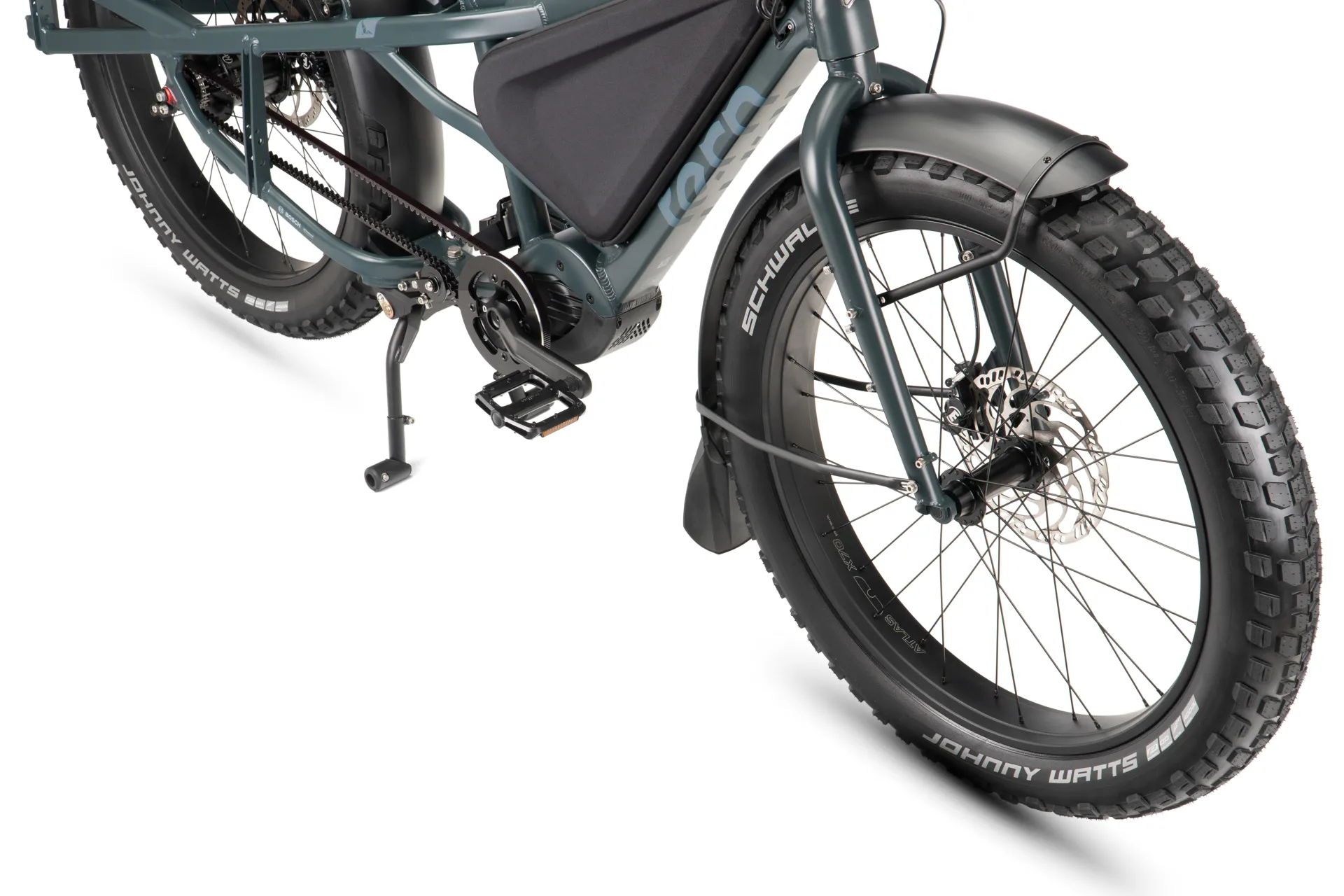

FENDERS:

Aluminum, heavy duty construction, oversize stays, 27.5"

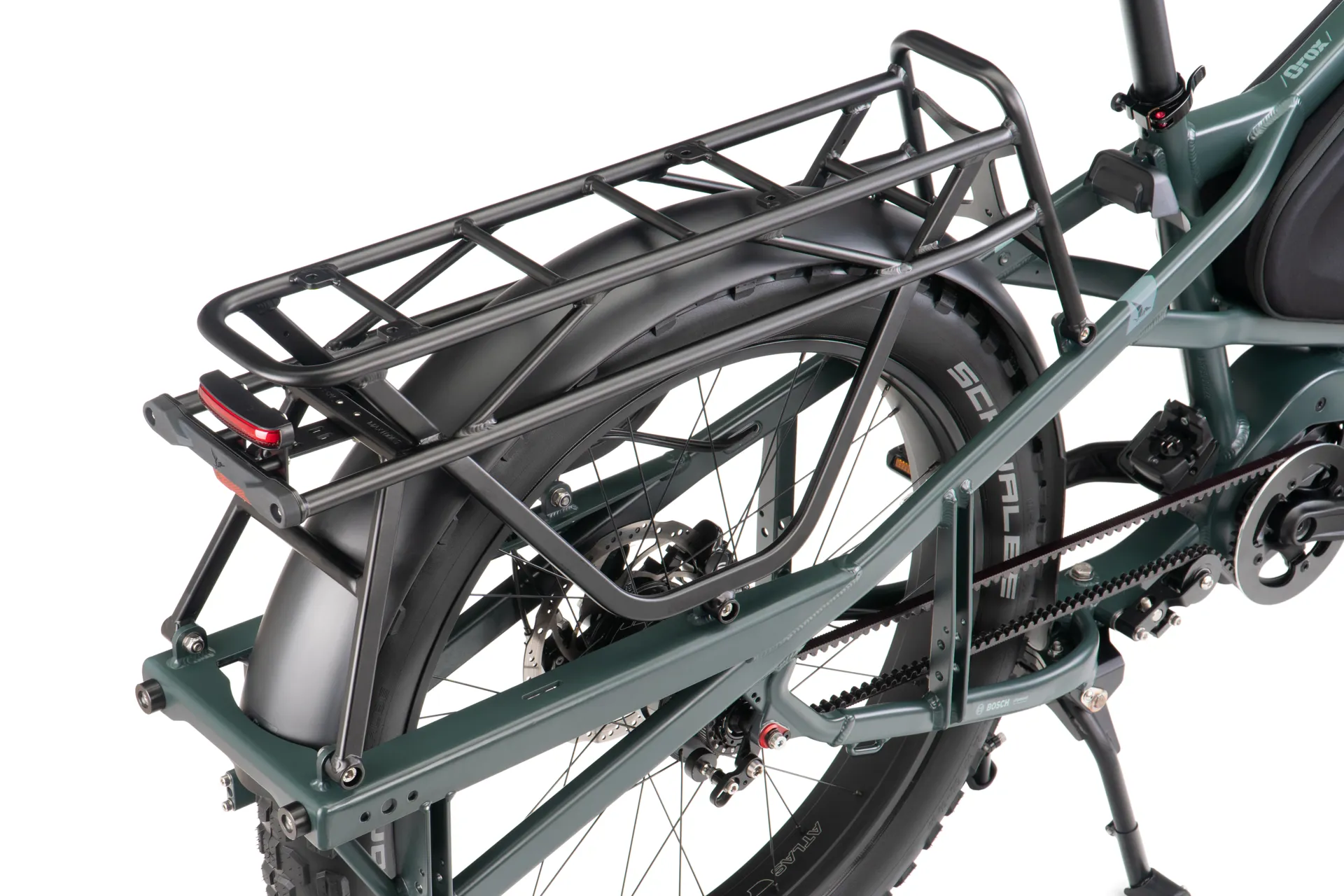

RACK(S):

Atlas X, 100 kg (220 lb) capacity
